Description
Vertical/Horizontal machining center Series
High speed | High precision | High rigidity

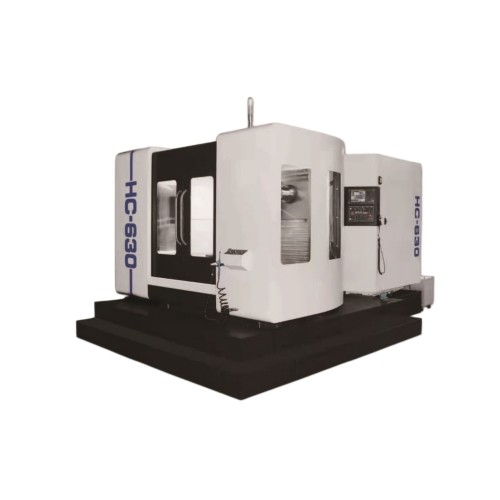

CNC horizontal milling machining center
Delivering heavy-duty cutting performance and high precision,
this model is the ideal solution for mass production and
stands as a great replacement for imported horizontal machining centers.
Design Features
1. High-Power Spindle for Heavy Cutting
Equipped with a high-torque spindle,
this machine excels in low-speed machining of cast iron and steel.
It is specifically optimized for large-scale mold manufacturing,
providing the robust cutting force needed for demanding materials.
2. Generous Travel and Wide Working Zone
Featuring generous axis travel,
it offers an expansive machining range to accommodate
large workpieces and complex operations within a single setup.
3. Self-Developed CNC Rotary table
Our proprietary CNC Rotary table
enables 4-sided machining in a single clamping.
This significantly reduces setup time,
eliminates cumulative errors from re-fixturing,
and boosts overall efficiency.
4. One-piece T-Type Structure
Built on a rigid, integrated T-type bed structure,
the machine ensures superior stability, high geometric accuracy,
and long-term reliability even under heavy-load conditions.
|
Technical Parameters |
Unit |
HC500 |
HC630 |
HC800 |
HC1000 |
HC630 (dual worktable) |
HC800 (dual worktable) |
|
Worktable size |
mm |
500x500 |
630x700 |
800x800 |
1000x1000 |
2x630x700 |
2x800x800 |
|
Worktable Indexing |
° |
1x360 |
|||||
|
T-slots |
|
5-18 |
24xM16 (number x tapped holes) |
||||
|
Indexing accuracy |
″ |
10 |
12 |
||||
|
Max. worktable load |
Kg |
700 |
1000 |
1500 |
2000 |
950 |
1500 |
|
X/Y/Z axis travel |
mm |
700/600/580 |
1050/750/900 |
1300/1000/1000 |
1600/1000/1000 |
1050/750/900 |
1300/1000/1000 |
|
Linear guideway specification |
|
Three-axis roller guidway |
|||||
|
Spindle center to worktable |
mm |
50-650 |
120-870 |
120-1120 |
120-1120 |
0-750 |
0-1000 |
|
Spindle nose to worktable center |
mm |
160-740 |
130-1030 |
200-1200 |
200-1200 |
130-1030 |
200-1200 |
|
Spindle taper |
|
BT40 |
BT50 |
||||
|
Spindle speed |
rpm |
8000 |
6000 |
||||
|
Spindle motor power |
Kw |
11/15 |
15/18.5 |
||||
|
Cutting feed rate |
m/min |
10 |
|||||
|
Rapid speed |
m/min |
30 |
30 |
24 |
24 |
24 |
24 |
|
Tool magazine capacity/Tool change time |
|
24T/3S |
30T/5.5S |
40T/5.5S |
40T/5.5S |
40T/5.5S |
40T/5.5S |
|
Positioning accuracy |
mm |
0.012 |
|||||
|
Repeatability |
mm |
0.008 |
0.01 |
||||
|
Machine weight |
t |
7 |
12 |
17 |
18 |
14 |
18 |
|
Overall dimensions |
mm |
3050x2050x2500 |
3500x6000x3000 |
4800x6400x3900 |
4800x6400x3900 |
3500x7500x3000 |
5500x8000x3000 |
|
CNC system |
|
Fanuc 0i MF Plus/Siemens 828D |
|||||
