Vertical/Horizontal machining center Series
High speed | High precision | High rigidity

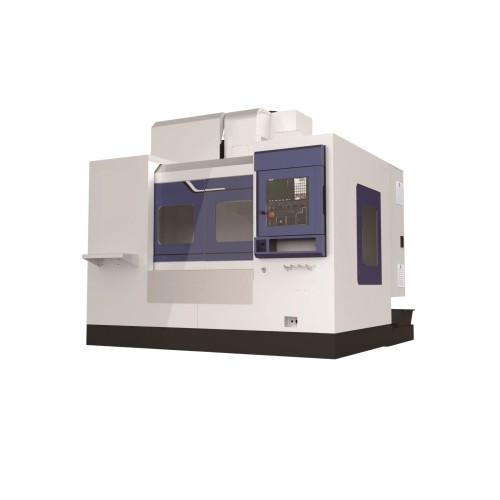

CNC vertical milling machining center
48m/min Rapid Speed
High-Speed Non-Cutting Positioning
5mm Max. Steel Cutting Depth
Heavy-Duty Machining Capacity
|
Technical Parameters |
Unit |
VC855 |
VC1165 |
VC1270 |
VC1580 |
|
Worktable size |
mm |
550x1000 |
600x1200 |
700x1360 |
900x1600 |
|
T-slots |
mm |
5-18x90 |
5-18x100 |
5-18x120 |
7-22x110 |
|
Max. worktable load |
Kg |
500 |
800 |
1000 |
1500 |
|
X/Y/Z axis travel |
mm |
800x550x550 |
1100x650x600 |
1200x700x700 |
1500x800x700 |
|
Linear guideway specification |
mm |
X:35/Y:45/Z:45 Roller type |
X:45/Y:45/Z:45 Roller type |
X:45/Y:55/Z:55 Roller type |
X:55/Y:45/Z:55 Roller type |
|
Spindle nose to worktable surface |
mm |
120-670 |
120-720 |
175-875 |
160-860 |
|
Spindle center to guideway |
mm |
590 |
665 |
770 |
855 |
|
Spindle speed |
rpm |
Belt-driven 8000/10000；Direct-driven 12000 |
(BT40) Belt-driven 8000/10000；Direct-driven 12000 (BT50) Belt-driven 6000；Direct-driven 8000 |
Belt-driven 6000；Direct-driven 8000 |
|
|
Spindle taper |
|
BT40-150 |
BT40-150 |
BT40-150/BT50-155 |
BT50-155 |
|
Spindle motor power |
Kw |
9/13.5 (Siemens) |
9/13.5 (Siemens) |
12/18 (Siemens) |
12/18 (Siemens) |
|
Cutting feed rate |
m/min |
48 |
24 |
24 |
20 |
|
Rapid speed |
m/min |
48 |
24 |
24 |
20 |
|
Tool magazine capacity |
|
24 tools (disc type) |
|||
|
Tool change time |
s |
1.8 |
|||
|
Positioning accuracy |
mm |
0.01 |
|||
|
Repeatability |
mm |
0.006 |
|||
|
Machine weight |
Kg |
5500 |
6500 |
8000 |
12000 |
|
Overall dimensions |
mm |
2600x2200x2600 |
2950x2550x2600 |
3450x2800x2700 |
4300x3200x3000 |
|
Power supply |
Kw |
22 |
25 |
30 |
35 |
|
Standard CNC system |
|
Siemens、Fanuc、Domestic brand |
|||
|
Machine Model |
Material |
Material Removal Rate (MRR) |
|
VMC855 |
45# Steel |
200 mm³/min |
|
VMC1165 |
45# Steel |
250 mm³/min |
|
VMC1270 |
45# Steel |
320 mm³/min |
|
VMC855 |
Aluminum (high-speed machining) |
1000 mm³/min |
|
VMC1165 |
Aluminum (high-speed machining) |
1100 mm³/min |
|
VMC1270 |
Aluminum (high-speed machining) |
1300 mm³/min |
