Description

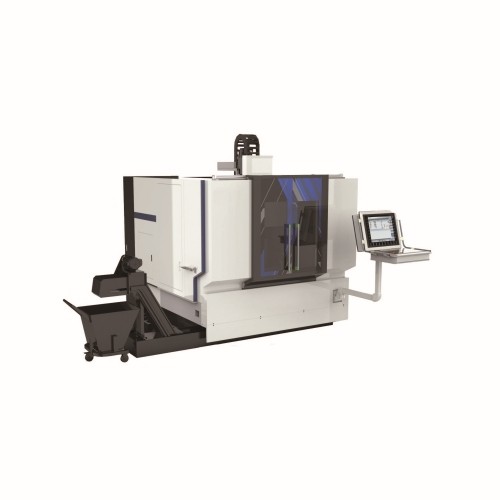

Crossbeam-type Cradle 5-axis Machining Center
Equipped with High-Speed Spindle, High-Torque Motor, and Turn-Mill Capability
Design Features
The machine features turn-milling compound functionality, light-duty turning can be easily achieved using optional turning tool holders.

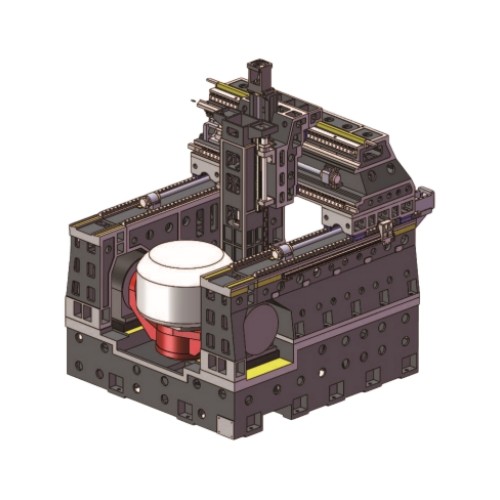

1. Features a gantry structure with an integral bed, ensuring high rigidity and superior dynamic performance.
2. Dual-drive gantry design with a four-rail linear guide system and advanced synchronous control technology.
3. Extended travel range maximizes the machine’s processing envelope.
4. High-precision imported ball screws and heavy-duty roller linear guides ensure long-term accuracy.
5. Dual-drive cradle Rotary table delivers high precision and rapid dynamic response.
6. Dual-speed, high-torque, high-speed electric spindle ideal for both titanium and aluminum alloy machining.
7. Standard equipment includes an umbrella-type tool magazine.
8. Tool setter is permanently mounted on the machine bed to minimize measurement errors.
9. Absolute linear encoders are integrated to enhance overall machining accuracy.
Electric spindle
Capable of high-speed aluminum milling and high-torque titanium machining, with integrated turning functionality.
Dual-speed electric spindle HSK-A63 (RTV5A400)
Low speed range: 42/50 kW, 71.7/85 Nm, max. speed 14000 rpm
High speed range: 42/50 kW, 28.6/33.7 Nm, max. speed 20000 rpm
Dual-speed electric spindle HSK-A63/A100 (RTV5A630/800)
Low speed: 37/45kW, 163/196.5 Nm, max. speed 7500 rpm
High speed: 42/50 kW, 54/65 Nm, max. speed 12000 rpm
The max. spindle speed in HSK-A63 configuration is 15,000 rpm

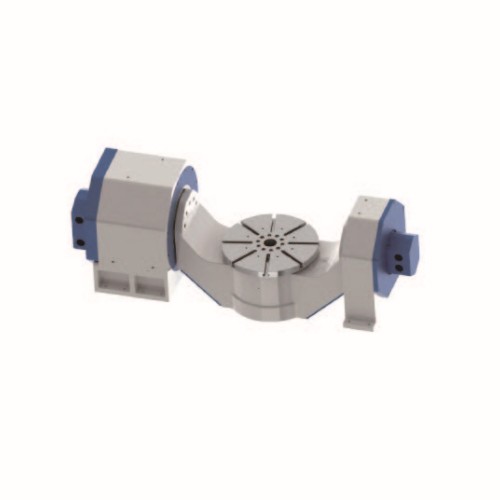

direct drive cradle Rotary table
|
Technical parameters |
Unit |
T5A400 |
T5A630 |
T5A800 |
|
Worktable (mm) |
mm |
400 |
630 |
800 |
|
Swing diameter (mm) |
mm |
500 |
800 |
1000 |
|
A-axis swing angle |
° |
±120 |
±110 |
±110 |
|
C-axis swing angle |
° |
n*360 |
n*360 |
n*360 |
Cradle 5-axis machining center series
|
Technical parameters |
Unit |
RTV5A400 |
RTV5A630 |
RTV5A800 |
|
Worktable size |
mm |
Φ400 |
Φ630 |
Φ800 |
|
Max. Worktable load |
kg |
200 |
1000 |
1200 |
|
Dist. From spindle nose to worktable |
mm |
150-600 |
150-760 |
150-760 |
|
X-axis travel |
mm |
500 |
1000 |
1000 |
|
Y-axis travel |
mm |
650 |
1150 |
1150 |
|
Z-axis travel |
mm |
450 |
610 |
610 |
|
Spindle |
|
Direct-drive spindle/electric spindle |
Direct-drive spindle/electric spindle |
Direct-drive spindle/electric spindle |
|
X/Y/Z axis rapid speed |
m/min |
48 |
48/36 |
48/36 |
|
X/Y/Z axis cutting speed |
m/min |
48 |
0-15 |
0-15 |
|
Tool magazine capacity |
|
20 |
24 |
24 |
|
Positioning accuracy |
mm |
0.006 |
0.006 |
0.006 |
|
Repeatability |
mm |
0.004 |
0.004 |
0.004 |
|
Weight |
t |
9 |
17 |
18 |
|
CNC system |
|
Siemens One ; Domestic |
||
*For more information, please contact us.
