Description

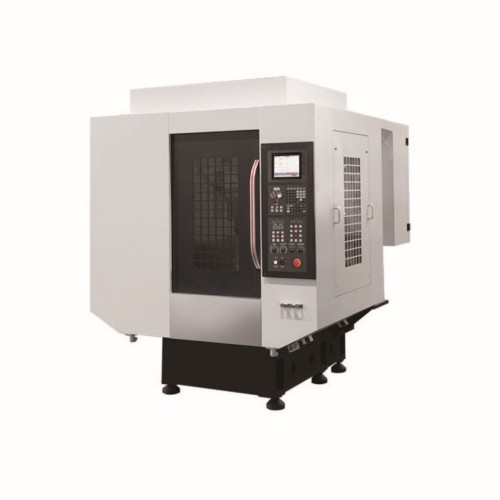

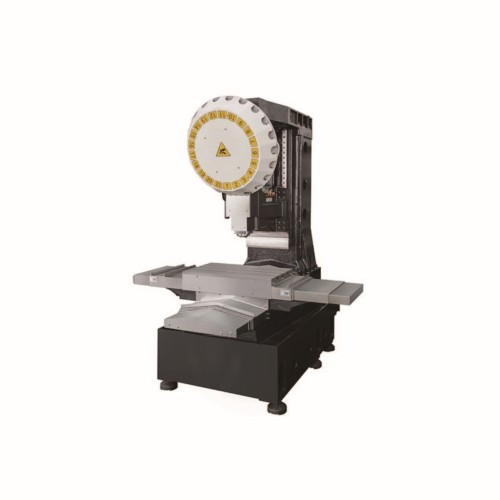

Vertical/Horizontal machining center Series
High speed | High precision | High rigidity
|
Technical Parameters |
Unit |
T6 |
T7 |
T8 |
|
Worktable size |
mm |
700x420 |
780x420 |
1000x500 |
|
T-slots |
mm |
3-14x125 |
3-14x125 |
5-18x100 |
|
Max. worktable load |
Kg |
250 |
250 |
350 |
|
X/Y/Z axis travel |
mm |
600x400x300 |
700x400x300 |
800x500x330 |
|
Linear guideway specification |
mm |
X:30/Y:30/Z:30 |
X:30/Y:30/Z:30 |
X:35/Y:35/Z:35 |
|
Spindle nose to worktable surface |
mm |
150-450 |
150-450 |
160-490 |
|
Spindle center to guideway |
mm |
464 |
464 |
546 |
|
Spindle speed |
rpm |
Direct-driven 20000 |
||
|
Spindle taper |
|
BT30 |
||
|
Spindle motor power |
Kw |
5.5 (Mitsubishi) |
||
|
Cutting feed rate |
m/min |
1-10000 |
||
|
Rapid speed |
m/min |
48/48/48 |
||
|
Tool magazine capacity |
|
21 |
||
|
Tool change time |
s |
1.4/1/9 |
||
|
Positioning accuracy |
mm |
0.01 |
||
|
Repeatability |
mm |
0.006 |
||
|
Machine weight |
Kg |
2900 |
2900 |
4500 |
|
Overall dimensions |
mm |
1760x2320x2240 |
1760x2320x2240 |
2500x2500x2300 |
|
Power supply |
Kw |
15 |
15 |
20 |
|
CNC system |
|
Mitsubishi M80B |
||
