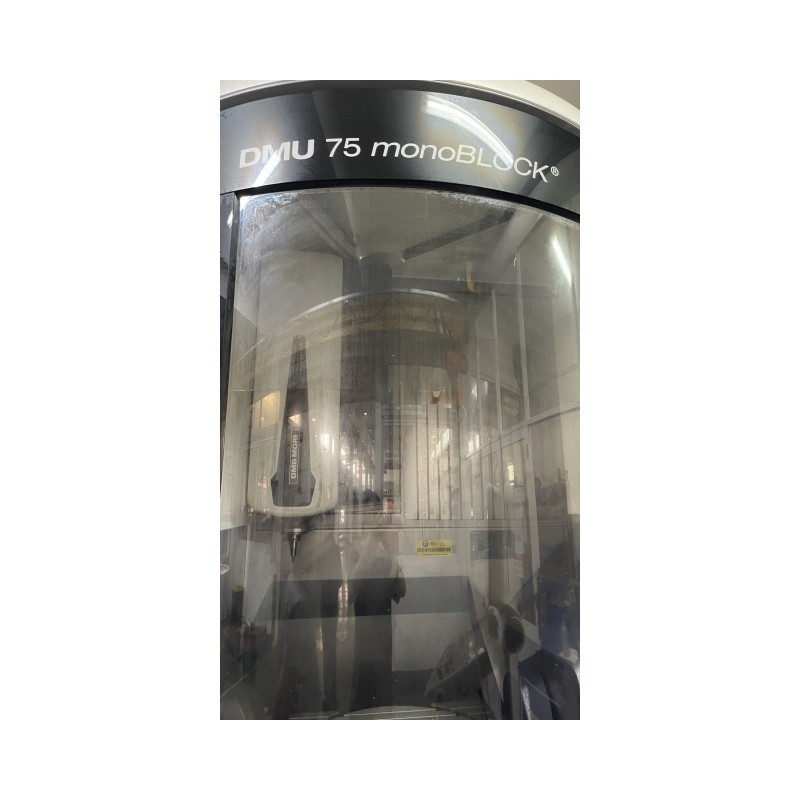

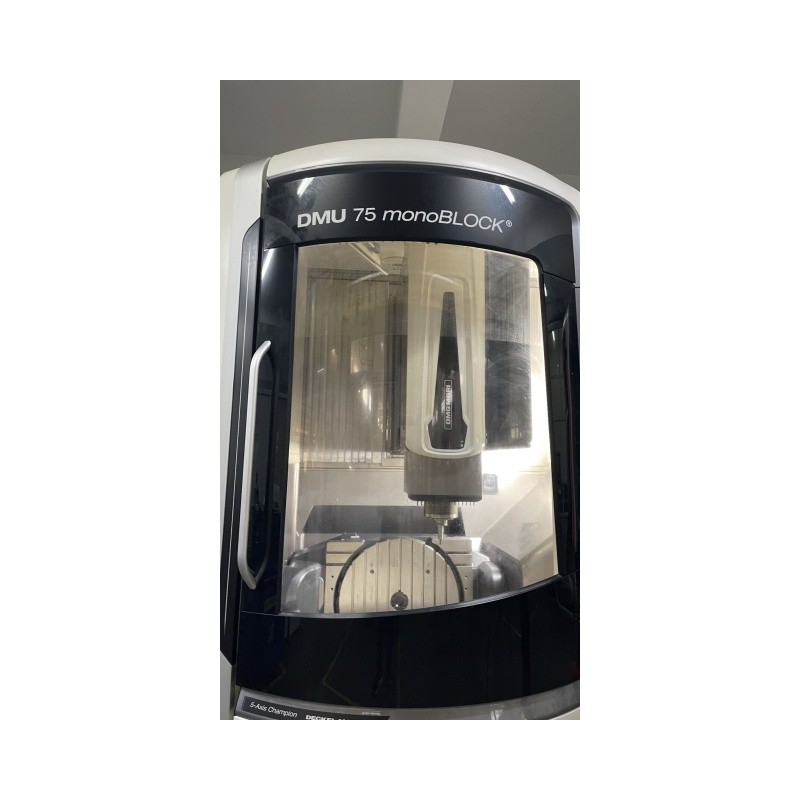

Used DMG MORI Five Axis DMU 75 monoBLOCK / 2 set

Detailed Description

Manufactured year 2022
Working hour: 900h
Dimension: 750 mm x 650 mm x 560 mm
Motor Spindle speed: MASTER®  20,000 rpm (35 kW 40% load cycle, 25 kW 100% load cycle）
Spindle holder: HSK A63
Vertical to spindle seat
Tool exchanger, double tool catcher, 60T chain type tool magazine

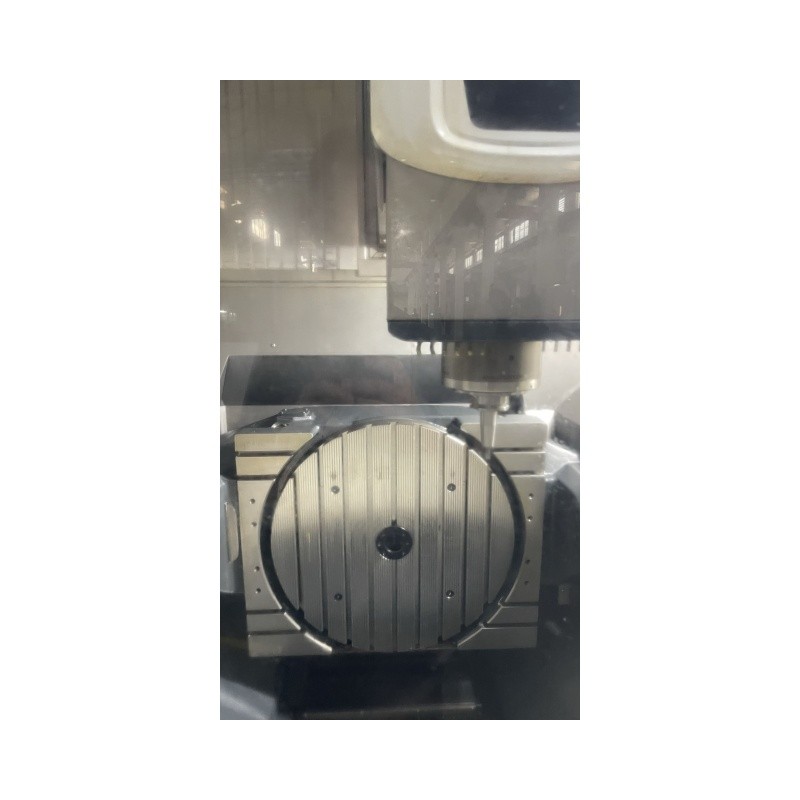

NC rotary table
To working spindle: +120°
To working spindle: -120°
From 0°position (Horizontal)
C axis rotary range: keep rotating
Heidenhain 640 control system
Optional configurations:
1. Scrap type chip conveyor
With intermittent control and independent coolant unit 600 l
With screen filter, chip removal hight: 950 mm
Inner coolant 40Bar
Chip washing inside the door
2. Water gun 2 bar
3. Probe Renishaw PP60
4. 3D quickSET
Tools for controlling and compensating the machine tool motion characteristics o 4/5-axis
5. Central spindle air blowing
6. Electronic handwheel
7. ATC(Regular cycle applications)
Programmable feed parameter selection, processing task: accuracy/ surface quality/ speed
8. Power-off protection
9. Accuracy enhancement
10. DMG internet service
11. DMG service assistant
C axis: d 650 mm

Worktable: 800 mm x 650 mm
Rotary angle: MPC (machine tool protection control)
