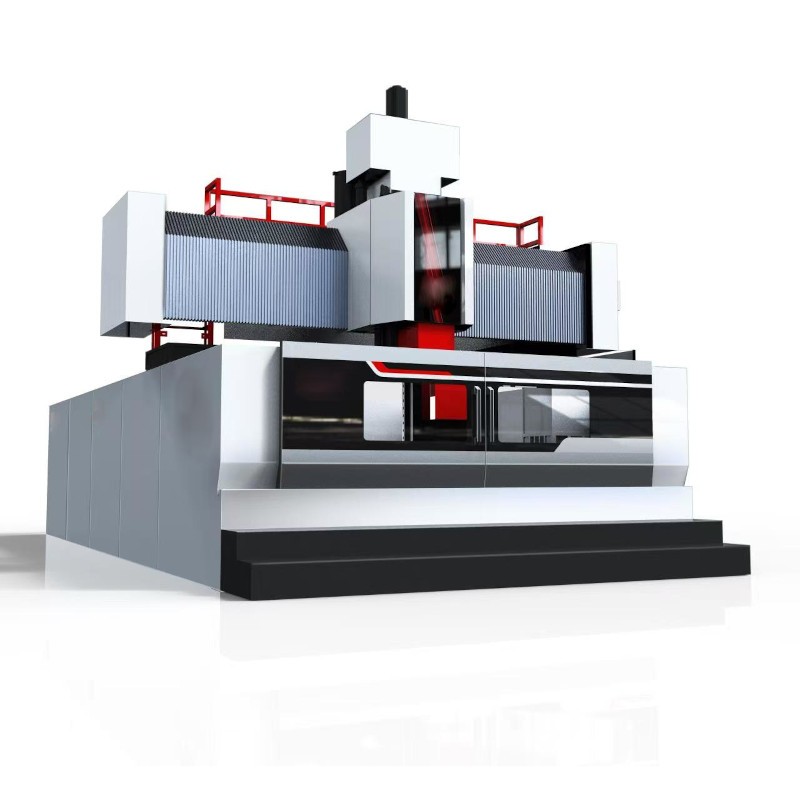

Description
Technical Parameters
|
Configuration |
Unit |
HCNT-IM2012 |
HCNT-IM2516 |
HCNT-IM3020 |
HCNT-IM4025 |
|
Worktable |
mm |
2000×1000 |
2500×1400 |
3000×1800 |
4000×2300 |
|
MAX. loading on table |
t |
12 |
15 |
30 |
35 |
|
Y1/Y2 travel |
mm |
1200/1700 |
1600/2100 |
2000/2500 |
2500/3000 |
|
X/Z travel |
mm |
2000×700 |
2500×800 |
3200×1000 |
4200×1000 |
|
Guideway |
|
X: 2 linear rolling guide+1 box guide, Y: 2 linear rolling guide×2+box guide×2, Z: 2 linear rolling guide+1 box guide. |
|||
|
Dist. from spindle nose to table |
mm |
300-1000 |
200-1000 (customizable) |
200-1200 (customizable) |
|
|
Spindle speed |
rpm |
BT50-8000, 1:4 high-speed gearbox/ optional |
|||
|
Spindle motor |
|
2012: 15/22.5kW (rated1500rpm) 96/144Nm (384/576Nm), 2516: 17/25.5kW (rated1000rpm) 162/243Nm (648/972Nm), 3020/4025: 22/30kW, 210/315Nm (840/1260Nm). |
|||
|
Tool magazine capacity |
position |
Disc 24 |
|||
|
Max. loading width (above guideway cover) |
mm |
1200 |
1600 |
2000 |
2500 |
|
Rapid/ feeding speed |
m/min |
15/0-15 |
|||
|
Positioning/ repeatability accuracy |
mm |
0.01/0.005 |
|||
|
Machine weight |
t |
16 |
20 |
32 |
37 |
|
Dimension (without electric cabinet) |
mm |
5400×4500×3200/3900 |
6100×4700×3700/4500 |
6700×5200×4200/5200 |
7800×5800×4200/5000 |
|
Control system |
|
Siemens 828D, Fanuc OiMFplus, optional: Siemens ONE |
|||
|
Configuration |
Unit |
HCNT-IMS60/80-30 |
HCNT-IMS60/80-35 |
HCNT-IMSXXX35 |
|
Worktable area |
mm |
6000/8000x2100 |
6000/8000x2600 |
XXXx2600 |
|
MAX. loading on table |
t |
38/60 |
50/65 |
/ |
|
Y1/Y2 travel |
mm |
3000/3500 |
3500/4000 |
|
|
X/Z travel |
mm |
6200/8200×1200 |
6200/8200×1200 |
/ |
|
Guide way |
|
X: 2 linear rolling guide way+1 box guide way, Y: 2 linear rolling guide way×2+box guide way×2, Z: box guide way |
||
|
Dist. from spindle nose to table |
mm |
350-1550, 350-1850/ optional |
||
|
Spindle |
rpm |
Built-in short direct motor BT50-6000 rpm, BT50-8000 rpm, BT50-3000 rpm (roller bearing), BT60-2000 rpm with gearbox/ optional CTS function for optional only suit for long direct connection structure |
||
|
Spindle motor |
|
30/35 series: standard28/42 kW (rated 1000 rpm) 268/401 Nm (two-speed gearbox 1070/1604 Nm) Optional: 35/52.5 Kw (rated 700 rpm), 418/717 Nm (two-speed gearbox 3000 Nm) |
||
|
Tool magazine capacity |
position |
Disc 24 position/ chain style tool changer |
||
|
Distance between columns |
mm |
3000 |
3500 |
|
|
Rapid traverse/ feed speed |
m/min |
15 (screw driven) 20 (rack driven)/0-10 |
||
|
Positioning accuracy/ repeatability |
mm |
0.01/0.005 |
||
|
Machine weight |
t |
50/65 |
58/70 |
/ |
|
Dimension (without electric cabinet) |
mm |
11650/13650×6850×5200 |
11650/13650×7750×5200 |
/ |
|
Control system |
|
Siemens 828D, Fanuc 0i MF plus, optional: Siemens ONE |
||
Note:
Adopts screw-nut transmission for up to 6 meters on X direction, double rack and pinion backlash elimination structure for 8 meters and above.
