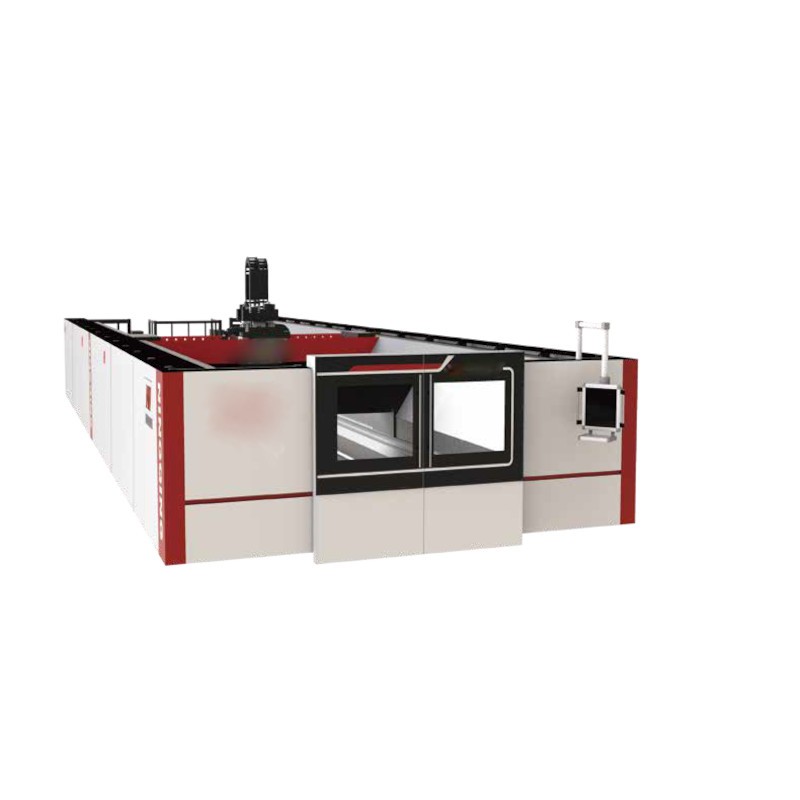

Description
Technical Parameters
|
Configuration |
Unit |
HCNT-CM 2515 |
HCNT-CM 2516 |
HCNT-CM 3016 |
HCNT-CM 3020 |
HCNT-CM 4016/6016 |
HCNT-CM XXX16 |
|
Worktable size |
mm |
2500×1600 |
2500×1600 |
3000×1600 |
3000×2000 |
4000/6000×1600 |
12,14,16,18,20 (table length increased by 2 m)×1600 |
|
Worktable load capacity |
t |
15 |
15 |
20 |
30 |
25/35 |
/ |
|
X/Y/Z travel |
mm |
2500×1500×800 |
2500×1600×600 |
3200×1600×600 |
3200×2000×600 |
4200/6200×1600×600 |
12200/14200/16200/18200/20200 (increase by 2 m) ×1600×600 |
|
Guide way |
|
X: two on each side /total four linear rail in parallel distribution, Y: the upper and lower four lines of rail vertical distribution, Z: four roller linear rail four-way distribution. |
|||||
|
Dist. from spindle nose to table |
mm |
200-1000 |
80-680 |
||||
|
Spindle |
mm |
BBT50, 12000 rpm |
HSK A63 |
||||
|
18 Kw, 57 Nm |
Siemens 25 kW, 82.6 Nm (B1 head/standard, B2 head/optional) |
||||||
|
MAX. workpiece H×W |
m/min |
950×1900 |
600×1900 |
600×1900 |
600×2300 |
600×1900 |
600×1900 |
|
Rapid speed |
mm |
20 |
40/20/20 |
||||
|
Feeding speed |
mm |
0-15 |
|||||
|
Positioning/repeat accuracy |
mm |
0.01/0.005 |
|||||
|
Weight of machine |
t |
30 |
27 |
29 |
32 |
33/42 |
/ |
|
Size (without electric cabinet) |
mm |
6000×4300×4200 |
6000×4300×3700 |
6800×4420×3700 |
6800×4820×3700 |
8200/10200×4420×3700 |
/ |
|
Control system |
|
Siemens 828D, Fanuc MF plus as standard, Siemens One as optional |
|||||
Note:
- Standard tool magazine capacity is 20 bits, for double beam structure tool magazine need special customization.
- Install electric spindle as standard configure, also BBT50-155, 12000 rpm directly connected spindle (18 Kw, 57 Nm) for optional yet Y direction stroke shall be reduced by 100mm.
- For length 25/30 series adopts screw on X-direction, for 40 and above series on X-direction adopts double rack pinion elimination gap structure.
- For length 25 series adopts double spiral + rear chain plate chip conveyor, for 30/40/60 series adopts scraper chip discharge on both sides of the bed, and above 60 series use flushing chip on left and right of the bed + rear double scraper chip discharge.
|
Configuration |
Unit |
HCNT-CMS 25 series |
HCNT-CMS 30 series |
HCNT-CMS 35 series |
HCNT-CMS 40 series |
HCNT-CMS 50 series |
|
Worktable length |
m |
14,16,18,20,22 (table length can be increased by every 2 meters) |
||||
|
Worktable width |
mm |
2100 |
2600 |
3100 |
3600 |
4600 |
|
Xtravel |
mm |
4000, 6000, 10000, 14200, 16200, 18200, 20200, 22200 (X-directional travel increases by every 2 meters) |
||||
|
Ytravel |
mm |
2500 |
3000 |
3000 |
3500 |
4000 |
|
Linear guide way |
|
X: 2 guide way/side×2 in parallel distribution, Y: 4 guide way in vertical distribution, Z: 4 roller guide way on four-way distribution |
||||
|
Max workpiece width |
mm |
3160 |
3600 |
4100 |
4600 |
5600 |
|
Rapid/feeding speed |
m/min |
40/0-20 |
||||
|
Positioning/repeat accuracy |
mm |
0.01/0.005 |
||||
|
Tool magazine capacity |
position |
20 |
||||
|
Control system |
|
Siemens 828D, Siemens ONE |
||||
|
Configuration |
Unit |
HCNT-CMS-HG |
HCNT-CMS-H |
HCNT-CMS-L |
|
Z travel |
mm |
600 |
1200 |
1200 |
|
Dist. from spindle nose to table |
mm |
100-700 (customizable) |
350-1550 (customizable) |
350-1550 (customizable) |
|
Electric spindle |
|
C1 head, C2 head/optional |
B1 head, C2 head/optional |
B1 head, C2 head/optional |
|
Max loading height |
mm |
650 (customizable) |
1550 (customizable) |
1550 (customizable) |
Note:
- The table length and X-axis stroke of the extra-long series models are increased by every 2 meters, and the table width and Y-axis stroke are increased by every 0.5 meters, model number changed accordingly.

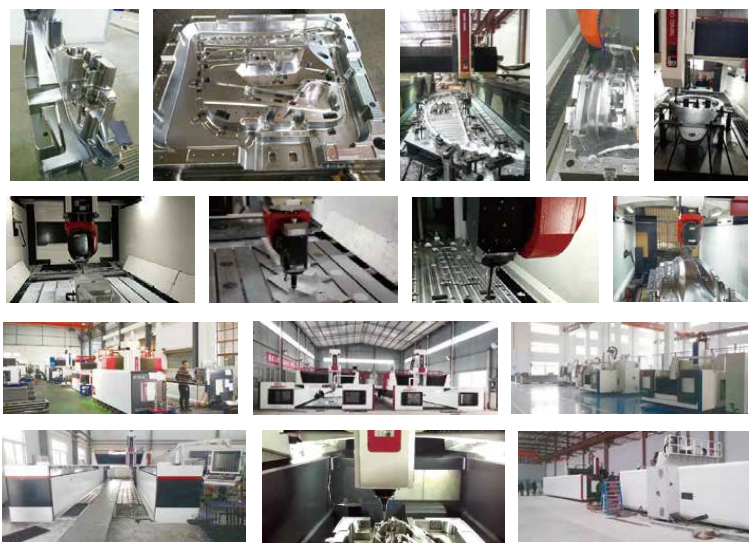

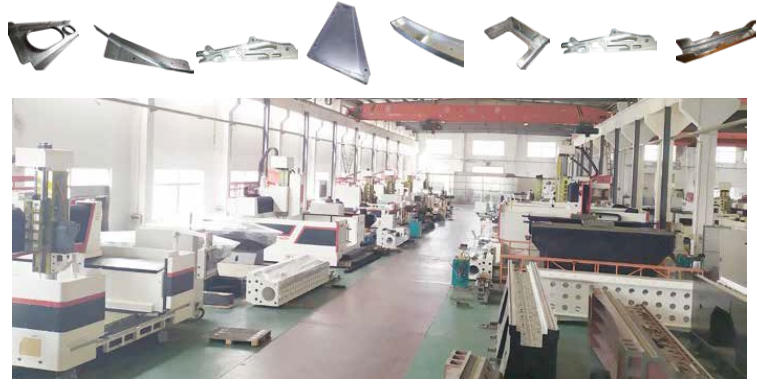

Processing Example
