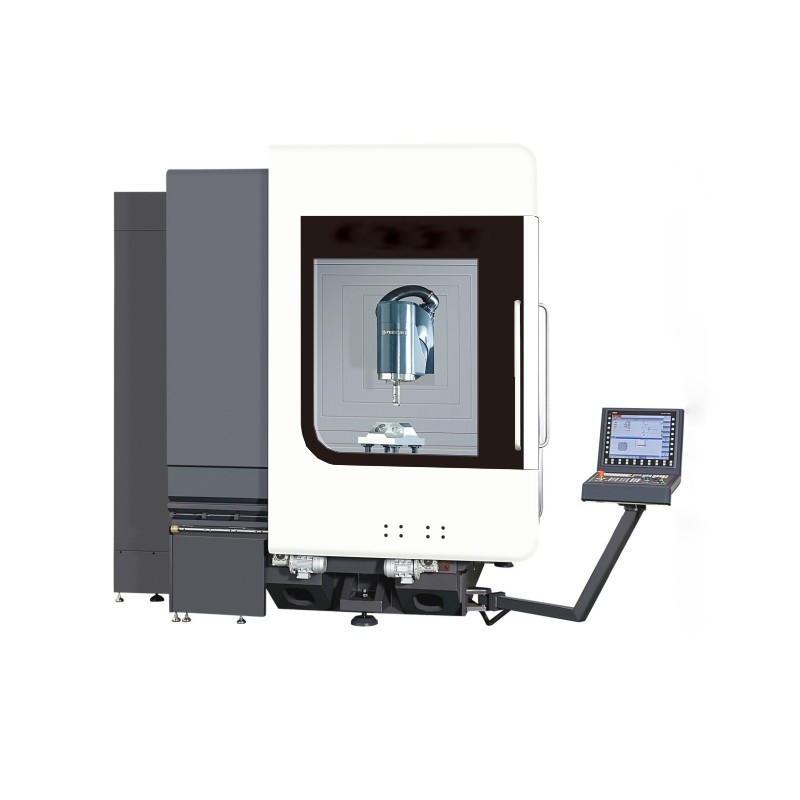

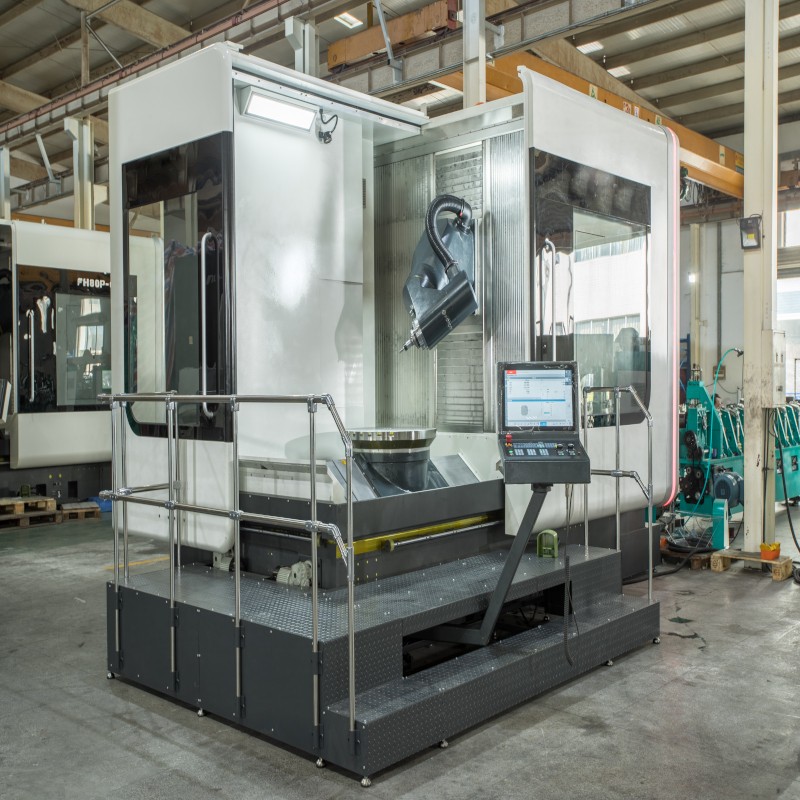

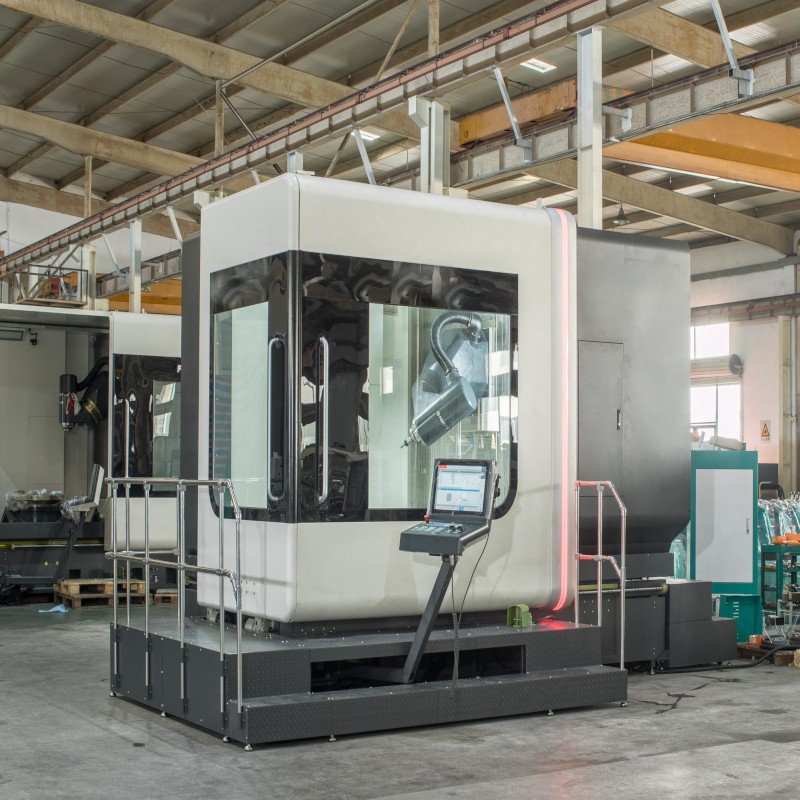

Description
Feature
Highlights
+Fully optimized coolant system
+High rigidity ensures high precision
+Higher efficiency to ensure perfect output
+Convenient and user-friendly operation
+Panoramic structure easily in maintenance
+Innovative tool management system
+Extremely cost-effective among the same specifications
+B/C axis DD direct drive structure with zero transmission chain for more precise transmission
+X/Y/Z three axis screw hollow cooling system
+B-axis & C-axis high-precision absolute rotary encoder measurement system
+XYZ three linear axes equipped with high-precision linear grating ruler
The high stability and high precision structure improved machine overall rigidity. Fundamental structure is further optimized through finite element calculation.
Spindle box
Motor spindle
Spindle box casing
B axis motor
X axis motor
X/Y/Z-axis hollow ball screw
Mill-turn rotary worktable
DD direct drive motor
Basic structure
Direct connected hollow ball screw
Heavy load roller linear guideway for X/Y/Z axis
Technical Parameters
Configuration
Unit
HCNT80P-C
X/Y/Z axis travel
mm
800*1050*800
Dist. from horizontal type milling head central to worktable
mm
39-839
Mill&turn rotary table speed
rpm
300
Worktable size
mm
φ880
MAX. worktable load
kg
Milling: 3000
kg
Turning: 1500
Numerical control swing milling head (B axis)
Standard
Swing range (0=vertical / 180=level)
degree
-15° to +180°
B axis rated speed
rpm
50
Dist. from vertical spindle nose to work table
mm
162 to 962
Electric spindle MAX. speed
rpm
12000
Power (S1-100%/S6-40%DC)
kW
34/ 42
Torque (S1-100%/S6-40%DC)
Nm
132/ 192
Cutting tool interface
HSK-A63
Tool magazine capacity
position
40
MAX. cutting tool diameter/ length/ weight
mm/ mm/ kg
φ85/ 300/ 8
Cutting tool changing time (tool to tool)
s
4
Drilling (normalizing medium carbon steel)
mm
φ40
Tapping (normalizing medium carbon steel)
M24
Spindle taper
1：10 Taper
Rapid traverse
m/min
40
X/Y/Z positioning accuracy
mm
0.006
X/Y/Z repeat positioning accuracy
mm
0.004
B/C positioning accuracy
inch
8"
B/C repeat positioning accuracy
inch
4"
Infrared probe
Renishaw OMP60
Tool setting (cutting tool measuring in processing region)
Renishaw NC4F230
Machine height (standard machine)
mm
3350
Main body area (L*W)
mm
4800*2930
Tool magazine area (L*W)
mm
1710*1350
Chip conveyor area (L*W)
mm
3070*1065
Water tank area (L*W)
mm
1785*1355
Complete machine area (excluding water tank) (L*W)
mm
5610*3600
Machine weight
kg
30000
Control system
Siemens ONE
