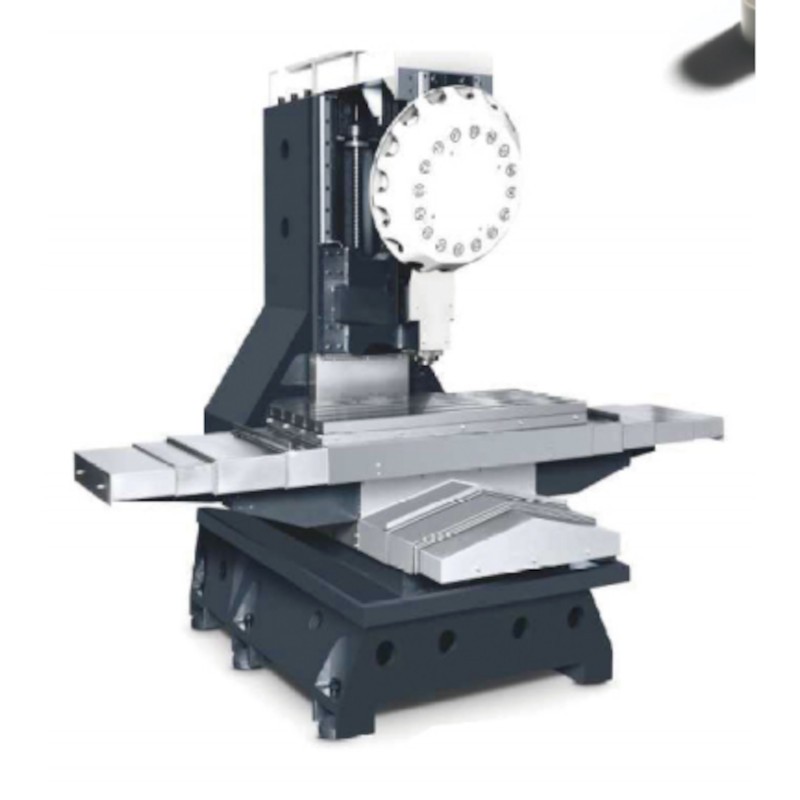

Description
Technical Parameters
|
Configuration |
Unit |
HCNT-TT6 |
HCNT-TT8 |
HCNT-TT10 |
|
|
Stroke |
X/Y/Z stroke |
mm |
600*400*300 |
800*500*330 |
1000*500*330 |
|
Dist. from spindle central to column guide rail surface |
mm |
464 |
546 |
546 |
|
|
Dist. from spindle nose to worktable |
mm |
150-450 |
150-480 |
150-480 |
|
|
Worktable |
Worktable size |
mm |
700*420 |
1000*500 |
1100*500 |
|
Worktable load |
kg |
300 |
350 |
350 |
|
|
T-slot(size*number of slots*dist.) |
mm |
14*3*125 |
18*5*100 |
18*5*100 |
|
|
Spindle |
Speed |
rpm |
20000 |
20000 |
20000 |
|
Spindle taper |
# |
BT30 |
BT30 |
BT30 |
|
|
Driving mode |
|
Direct connection |
|||
|
Feed system |
Three-axis cutting feed |
mm/min |
1-20000 |
1-20000 |
1-20000 |
|
Three-axis rapid feed |
mm/min |
36 |
36 |
36 |
|
|
Accuracy |
Positioning accuracy |
mm |
±0.005/300 |
±0.005/300 |
±0.005/300 |
|
Repeatability |
mm |
±0.003/300 |
±0.003/300 |
±0.003/300 |
|
|
Tool changing system |
Number of cutting tools |
PSC |
21 |
21 |
21 |
|
MAX. cutting tool weight |
Kg |
3 |
3 |
3 |
|
|
MAX. cutting tool length |
mm |
200 |
200 |
200 |
|
|
Tool diameter (full tool/ empty tool) |
mm |
100/140 |
100/140 |
100/140 |
|
|
Tool magazine type |
|
Swash plate type |
Swash plate type |
Swash plate type |
|
|
CNC system |
Control system |
|
FANUC 01-MF Plus |
||
|
Spindle motor power |
KW |
3.7/9 |
3.7/9 |
3.7/9 |
|
|
Three-axis motor power |
KW |
2.5/2.5/2.7 |
2.5/2.5/2.7 |
2.7/2.7/2.5 |
|
|
Other |
Air pressure |
bar |
0.6 |
0.5 |
0.5 |
|
Electricity request |
kva |
15 |
15 |
15 |
|
|
Machine total weight |
Kg |
3200 |
4000 |
5000 |
|
