Description
CNC lathe/Turning machine

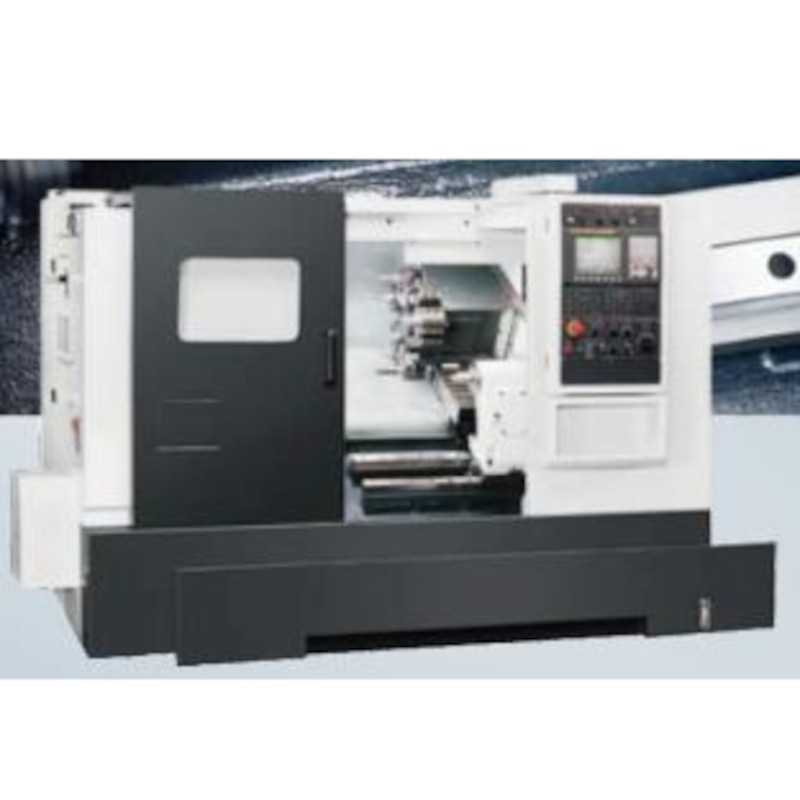

HCNT X-2000MY - Slant Bed Lathe
Feature
The machine bed adopts a 30 degree integral casting structure with strong stability.
Y-axis interpolation can provide better machining rigidity.
Huge y-axis travel(140mm=±70mm).
Optional counter spindle can be used to achieve complex workpieces one-time clamping and processing.
Technical Parameters
|
Configuration |
Unit |
HCNT X-2000MY |
|
|
Basic |
MAX. rotation diameter |
mm |
Ø 560 |
|
MAX. turning diameter |
mm |
Ø 390 |
|
|
MAX. turning length |
mm |
500 |
|
|
Hydraulic chuck |
|
8" |
|
|
Bar diameter |
mm |
Ø 52 |
|
|
Spindle |
Spindle through-hole diameter |
mm |
Ø 76 mm |
|
Spindle bearing diameter |
mm |
Ø 90 mm |
|
|
Hydraulic cylinder diameter |
inch |
8” |
|
|
Spindle nose |
A2-6 |
||
|
Spindle driving type |
Belt driven |
||
|
Spindle speed |
rpm |
||
|
Cs axis |
Cs axis motor |
Bz-sensor |
|
|
MIN. spindle positioning accuracy |
° |
0.001° |
|
|
Dynamic accuracy |
° |
± 0.02° |
|
|
X&Z axis |
MAX. X axis travel |
mm |
230 |
|
MAX. Z axis travel |
mm |
630 |
|
|
MAX. Ｘ/Z axis rapid feed |
m/min. |
30 |
|
|
Guideway type |
Linear guideway |
||
|
X axis roller screw diameter/ pitch |
mm/p |
Ø 32 / 10 |
|
|
Z axis roller screw diameter/ pitch |
mm/p |
Ø 32 / 10 |
|
|
X/Z axis thrust (continuous) |
kg |
769 |
|
|
Turret |
Turret capacity |
station |
10 |
|
Tool changing speed |
s |
0.2 (adjacent tool)/ 0.5 (opposite tool) |
|
|
Accuracy |
° |
Positioning: ±0.00069° Repeatability: ±0.00027° |
|
|
Square cutting tool |
mm |
□25 |
|
|
Circular cutting tool |
mm |
Ø 40 |
|
|
Drive motor |
MAX. cutting length |
mm |
210 |
|
Turret capacity |
station |
12 |
|
|
Drive motor capacity |
12(during processing the motor rotates only, the rest not) |
||
|
Tool changing speed |
s |
0.2 (adjacent tool)/ 0.5 (opposite tool) |
|
|
Square cutting tool |
mm |
□20 |
|
|
Circular cutting tool |
mm |
Ø 25 |
|
|
Drive motor tool size |
mm |
Ø 16 mm ER 25 collets |
|
|
Motor tool speed |
rpm |
4,000 |
|
|
Y axis |
MAX. turning diameter |
mm |
Ø 310 |
|
MAX. turning length |
mm |
540 |
|
|
MAX. Y axis travel |
mm |
140 mm=±70 mm |
|
|
MAX. Y axis rapid feed |
m/min. |
10 |
|
|
Guideway type |
Linear guideway (roller35) |
||
|
Y axis roller screws diameter/ pitch |
mm/p |
Ø 32/ picth |
|
|
Y axis thrust (continuous) |
kg |
769 |
|
|
Tailstock |
Spindle bore |
MT#4 (ejector pin) |
|
|
Spindle diameter (travel) |
mm |
Ø 70 mm [80 mm] / Ø 70 mm [150 mm] |
|
|
Tailstock body travel |
mm |
300/ 500 |
|
|
Programmable |
Spindle through-hole diameter |
mm |
Ø 42 |
|
Bar diameter |
mm |
Ø 31 |
|
|
Spindle bearing diameter |
mm |
Ø 75 |
|
|
Spindle speed |
rpm |
6,000 |
|
|
MAX. Z2 axis travel |
mm |
630 |
|
|
MAX. Z2 axis rapid feed |
m/min. |
30 |
|
|
Guideway type |
Linear guideway (roller) |
||
|
Z2 axis roller screws diameter/ pitch |
mm/p |
Ø 32 / 10 |
|
|
Z2 axis thrust (continuous) |
kgf |
448 |
|
|
Accuracy/ |
Repeat positioning accuracy (X axis) |
mm |
± 0.002 |
|
Repeat positioning accuracy (Z axis) |
mm |
± 0.002 |
|
|
Standard controller |
Huazhong CNC/ SYNTEC/ FANUC |
||
|
Voltage/ power request |
AC 200/ 220 +10% to -15% 3 phase / 20 kVA |
||
|
Oil tank capacity |
L |
20-40 |
|
|
Coolant tank capacity |
L |
160 |
|
|
Coolant pump/ water pressure |
0.5 kW（3/4 HP ,60 Hz）rated at 3 bar（43.5 PSl） |
||
|
Machine weight |
kg |
3400 |
|
|
Dimension (L*W*H) |
mm |
2612×1780 ×1752 |
|
