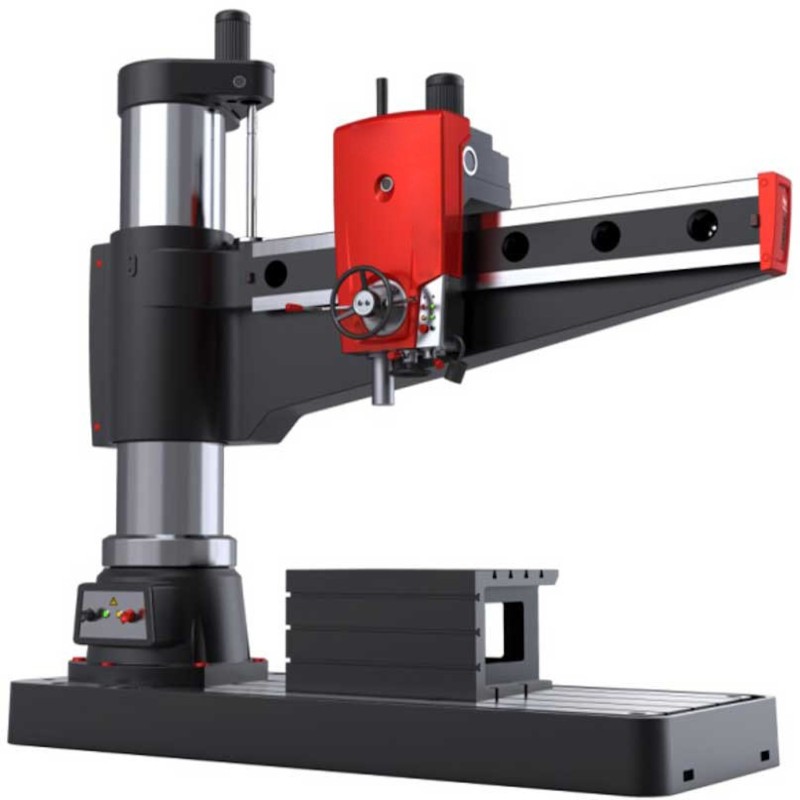

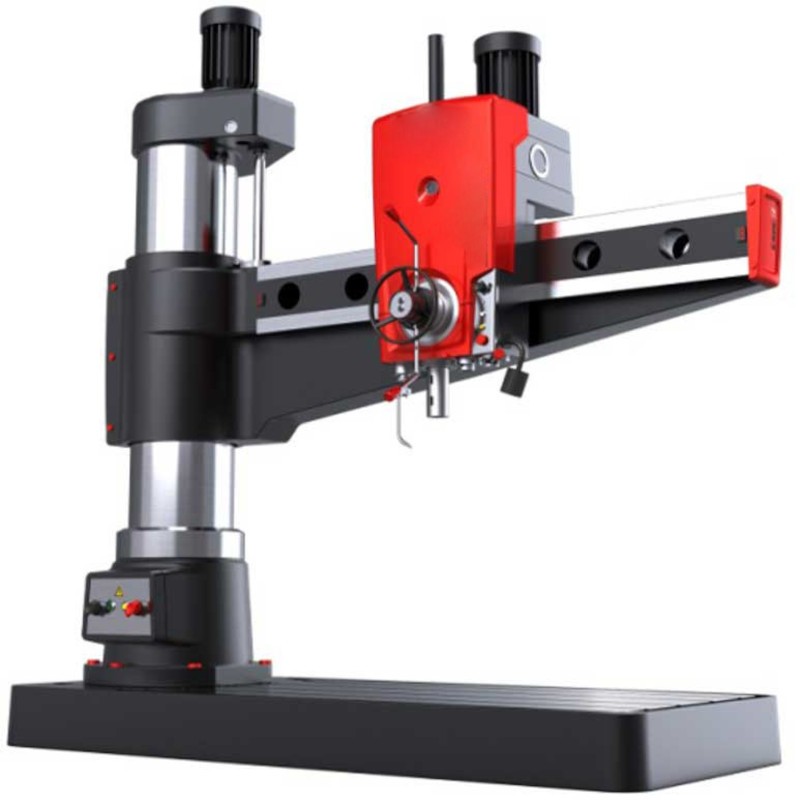

Description
Technical Parameters
|
Configuration |
Unit |
Z3040*16/1 |
Z3050*16/1 |
Z3063*20/1 |
Z3080*25 |
Z30100*31 |
Z30125*40 |
|
MAX. drilling diameter |
mm |
40 |
50 |
63 |
80 |
100 |
125 |
|
Dist. between spindle axis and column (MIN./MAX.) |
mm |
350/1600 |
350/1600 |
450/1600 |
500/2500 |
570/3150 |
600/4000 |
|
Dist. between spindle axis and working surface of machine base (MIN./MAX.) |
mm |
320/1250 |
320/1220 |
400/1600 |
550/2000 |
750/2500 |
750/2500 |
|
Spindle travel |
mm |
315 |
315 |
400 |
450 |
500 |
560 |
|
Spindle taper |
|
Morse 4 |
Morse 5 |
Morse 5 |
Morse 6 |
Morse 6 |
Metric 80 |
|
Range of spindle speed |
r/min |
25-2000 |
25-2000 |
20-1600 |
16-1250 |
8-1000 |
6.3-800 |
|
Steps of spindle speed |
No. |
16 |
16 |
16 |
16 |
22 |
22 |
|
Range of spindle feeds |
mm |
0.04-3.2 |
0.04-3.2 |
0.04-3.2 |
0.04-3.2 |
0.06-3.2 |
0.06-3.2 |
|
Steps of spindle feeds |
No. |
16 |
16 |
16 |
16 |
16 |
16 |
|
Worktable dimensions |
mm |
630*500*500 |
630*500*500 |
800*630*500 |
1000*800*560 |
1250*800*630 |
1250*800*630 |
|
Horizontal moving dist. of the headstock |
mm |
1250 |
1250 |
1550 |
2000 |
2580 |
3400 |
|
MAX. torque of spindle |
Nm |
400 |
400 |
980 |
1568 |
2450 |
3136 |
|
Power of main motor |
kW |
3 |
4 |
5.5 |
7.5 |
15 |
18.5 |
|
Lifting distance of swing arm |
mm |
580 |
580 |
800 |
1000 |
1250 |
1250 |
|
Weight of the machine |
kg |
3500 |
3500 |
7000 |
11000 |
20000 |
08500 |
|
Overall dimensions (L*W*H) |
mm |
2500*1070*2840 |
2500*1070*2840 |
3080*1250*3205 |
3730*1400*3795 |
4560*1630*4525 |
5650*2151*4950 |
