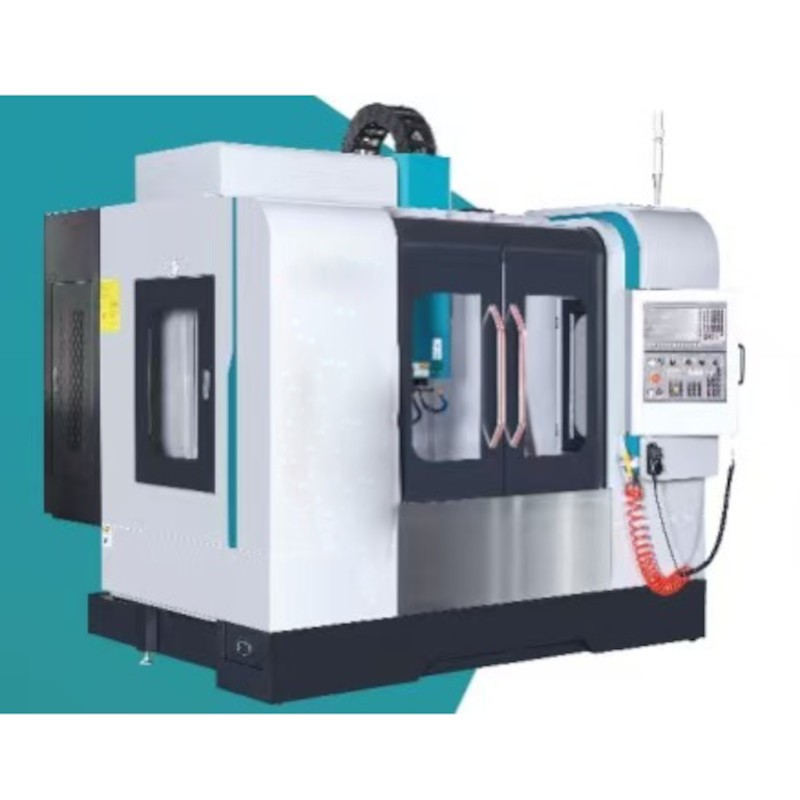

Description
Technical Parameters
|
Configuration |
Unit |
HCNT-T855 |
HCNT-T1160 |
HCNT-T1370 |
|
|
Stroke |
X/Y/Z stroke |
mm |
800*550*500 |
1100*600*600 |
1300*700*700 |
|
Dist. from spindle central to column guide rail surface |
mm |
606 |
692 |
692 |
|
|
Dist. From spindle nose to worktable |
mm |
120-670 |
120-720 |
120-820 |
|
|
Worktable |
Worktable size |
mm |
1000*550 |
1200*600 |
1400*700 |
|
Worktable load |
Kg |
600 |
800 |
1000 |
|
|
T-slot (size*number of slots*dist.) |
mm |
18*5*80 |
18*5*100 |
18*5*120 |
|
|
Spindle |
Speed |
rpm |
12000(optional 8000) |
8000(optional 12000) |
8000(optional 12000) |
|
Spindle taper |
# |
BT40 |
|||
|
Driving mode |
|
Belt/ direct connection |
|||
|
Feed system |
Three-axis cutting feed |
mm/min |
1-10000 |
||
|
Three-axis rapid feed |
mm/min |
48 |
36 |
||
|
Accuracy |
Positioning accuracy |
mm |
±0.005/300 |
±0.005/300 |
±0.005/300 |
|
Repeatability |
mm |
±0.003/300 |
±0.003/300 |
±0.003/300 |
|
|
Tool changing system |
Number of cutting tools |
PSC |
24 |
24 |
24 |
|
MAX. cutting tool weight |
Kg |
7 |
7 |
7 |
|
|
MAX. cutting tool length |
mm |
300 |
300 |
300 |
|
|
Cutting tool diameter （full tool/ empty tool) |
mm |
80/150 |
80/150 |
80/150 |
|
|
Tool magazine |
|
Disc type |
Disc type |
Disc type |
|
|
CNC system |
Control system |
|
FANUC 01-MF Plus/ MELDAS/ FANUC 01-MF Plus/ Mitsubishi M80 |
||
|
Spindle motor power |
KW |
7.5/15 |
11/18.5 |
11/18.5 |
|
|
Three-axis motor power |
KW |
1.8/1.8/3.0 |
3.0/3.0/3.0 |
3.0/3.0/3.0 |
|
|
Other |
Air pressure |
bar |
0.6 |
0.6 |
0.6 |
|
Electricity request |
kva |
25 |
45 |
45 |
|
|
Machine total weight |
Kg |
5000 |
7000 |
8500 |
|
