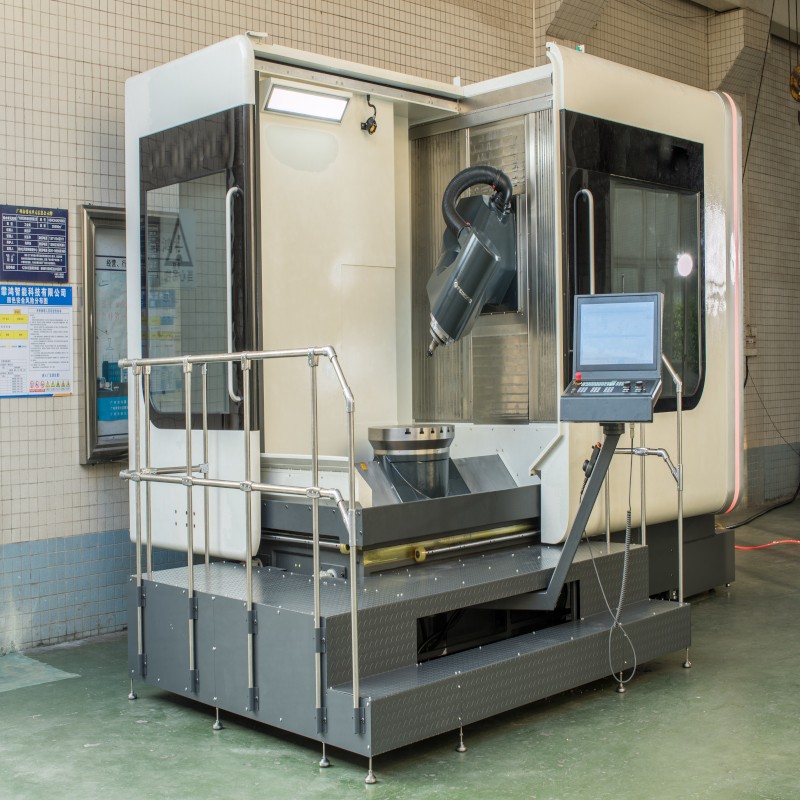

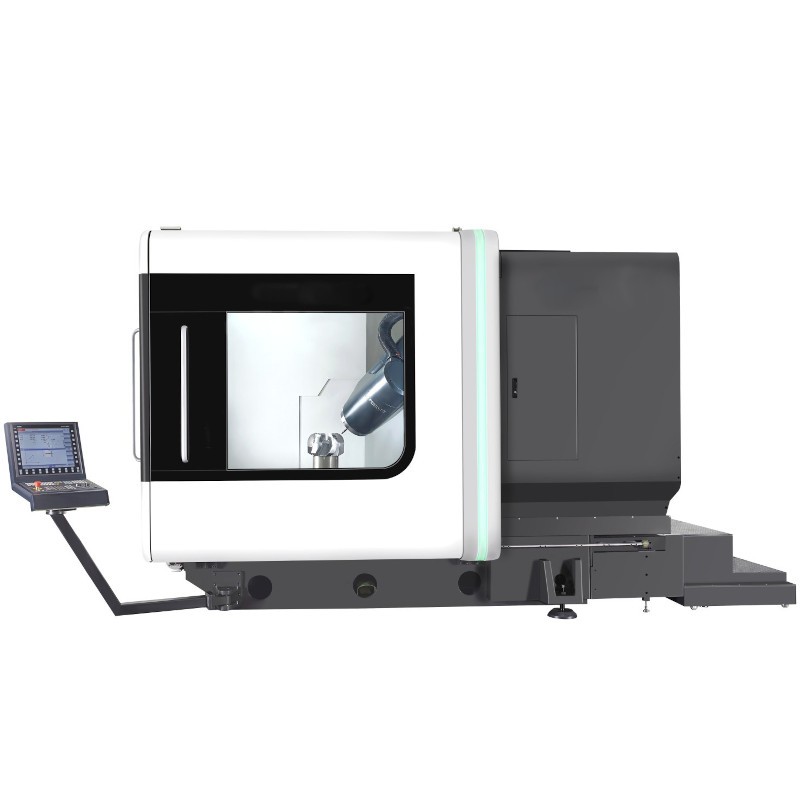

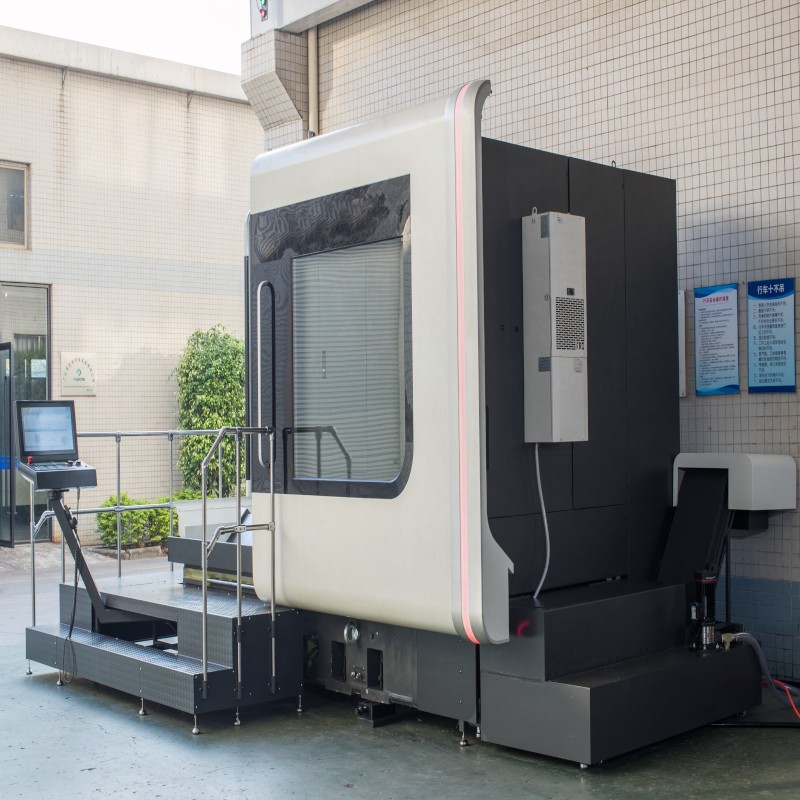

Description
Feature
Highlights
+Fully optimized coolant system
+High rigidity ensures high precision
+Higher efficiency to ensure perfect output
+Convenient and user-friendly operation
+Panoramic structure easily in maintenance
+Innovative tool management system
+Extremely cost-effective among the same specifications
+B/C axis DD direct drive structure with zero transmission chain for more precise transmission
+X/Y/Z three axis screw hollow cooling system
+B-axis & C-axis high-precision absolute rotary encoder measurement system
+XYZ three linear axes equipped with high-precision linear grating ruler
The high stability and high precision structure improved machine overall rigidity. Fundamental structure is further optimized through finite element calculation.
Spindle box
Motor spindle
Spindle box casing
B axis motor
X axis motor
X/Y/Z-axis hollow ball screw
Mill-turn rotary worktable
DD direct drive motor
Basic structure
Direct connected hollow ball screw
Heavy load roller linear guideway for X/Y/Z axis
Technical Parameters
|
Configuration |
Unit |
HCNT60P-C |
|
X/Y/Z axis travel |
mm |
600×800×600 |
|
Dist. from horizontal type milling head central to worktable |
mm |
30-630 |
|
Mill&turn rotary table speed |
rpm |
350 |
|
Worktable size |
mm |
φ660 |
|
Max. worktable load |
kg |
Milling: 2000 |
|
kg |
Turning: 1000 |
|
|
Numerical control swing milling head (B axis) |
|
Standard |
|
Swing range (0=vertical/ 180=level) |
degree |
-15° to +180° |
|
B axis rated speed |
rpm |
50 |
|
Dist. from vertical type spindle nose to worktable |
mm |
150 to 750 |
|
MAX. electric spindle speed |
rpm |
12000 |
|
Power (S1-100%/40%DC) |
kW |
34/42 |
|
Torque (S1-100%/40%DC) |
Nm |
132/192 |
|
Cutting tool interface |
|
HSK-A63 |
|
Tool magazine capacity |
position |
40 |
|
Max. tool diameter/ length/ weight |
mm/mm/kg |
φ85/300/8 |
|
Cutting tool changing time (tool to tool) |
s |
4 |
|
Drilling (normalizing medium carbon steel) |
mm |
φ40 |
|
Tapping (normalizing medium carbon steel) |
|
M24 |
|
Spindle taper |
|
1：10 Taper |
|
Rapid traverse |
m/min |
40 |
|
X/Y/Z positioning accuracy |
mm |
0.006 |
|
X/Y/Z repeat positioning accuracy |
mm |
0.004 |
|
B/C axis positioning accuracy |
inch |
8" |
|
B/C axis repeat positioning accuracy |
inch |
4" |
|
Infrared probe |
|
Renishaw OMP60 |
|
Tool setting (cutting tool measuring in processing region) |
|
Renishaw NC4F230 |
|
Machine height (standard machine) |
mm |
2985 |
|
Main body area (L*W) |
mm |
4300x2600 |
|
Tool magazine area (L*W) |
mm |
2100x1250 |
|
Chip conveyor area (L*W) |
mm |
3070x1065 |
|
Water tank area(L*W) |
mm |
1785x1355 |
|
Complete machine area (excluding water tank) (L*W) |
mm |
5200x3550 |
|
Machine weight |
kg |
23000 |
|
Control system |
|
Siemens ONE |
