Description
Technical Parameters
|
Configuration |
Unit |
HCNT-CM5A3016 |
HCNT-CMI5A3020 |
|
Worktable area |
mm |
3200×1600 |
3200×2000 |
|
Max. loading on worktable |
t |
20 |
30 |
|
X/Y/Z travel |
mm |
3200×1600×800 |
3200×2000×1000 |
|
Guide way |
|
X: 2 linear guide way on each side Y: 4 heavy-duty linear roller guide way Z: 4 linear roller guide way |
|
|
Dist. from spindle nose to table surface |
mm |
280-1080 (customizable) |
280-1280 (customizable) |
|
Spindle |
|
B head/standard A, C head/optional |
|
|
Tool magazine capacity |
position |
20 |
|
|
MAX. loading height |
mm |
1000 (customizable) |
1000 (customizable) |
|
MAX. loading width |
mm |
2000 |
|
|
Feeding speed |
m/min |
0- 20 |
|
|
Rapid speed |
m/min |
40/40/20 |
|
|
Positioning accuracy |
mm |
0.01 |
|
|
Repeat positioning accuracy |
mm |
0.005 |
|
|
Weight of machine |
t |
40 |
42 |
|
Dimension (without electric cabinet) |
mm |
7400×4300×5500 |
7400×4700×6200 |
|
Control system |
|
5-axis simultaneous standard Siemens ONE/Heidenhain |
|
|
Parameters |
Unit |
CMS5A 40/60/8025 |
CMS5A 40/60/8030 |
CMS5A 40/60/8035 |
CMS5A 40/60/8040 |
|
Worktable area |
mm |
4000/6000/8000 ×2500 |
4000/6000/8000 ×3000 |
4000/6000/8000 ×3500 |
4000/6000/8000 ×4000 |
|
MAX. loading on worktable |
t |
30/40/55 |
40/50/65 |
50/60/75 |
60/70/85 |
|
X/Y/Z travel |
mm |
4200/6200/8200 ×2500×1500 |
4200/6200/8200 ×3000×1500 |
4200/6200/8200 ×3500×1500 |
4200/6200/8200 ×4000×1500 |
|
Guide way |
|
X: 2 linear guide way on each side Y: 4 heavy-duty linear roller guide way Z: 4 linear roller guide way |
|||
|
Dist. from spindle nose to table surface |
mm |
150-1650 (customizable) |
|||
|
Spindle |
|
B head/standard C, Dhead/optional |
|||
|
Tool magazine capacity |
position |
20×1 unit (MAX. 20×4 units) |
|||
|
MAX. loading height |
mm |
1500 (customizable) |
|||
|
MAX. loading width |
mm |
3300 |
3800 |
4300 |
4800 |
|
Feeding speed |
m/min |
0-20 |
|||
|
Rapid speed |
m/min |
40/40/20 |
|||
|
Positioning accuracy |
mm |
0.01 |
|||
|
Repeat positioning accuracy |
mm |
0.005 |
|||
|
Weight of machine |
t |
60/75/95 |
63/78/98 |
67/82/102 |
70/85/106 |
|
Dimension (without electric cabinet) |
mm |
9090/11080/13080 ×6800×5600 |
9080/1080/13080 ×7300×500 |
9080/11080/13080 ×7800×5600 |
980/11080/13080 ×8300×5600 |
|
Control system |
|
5-axis simultaneous standard Siemens ONE/Heidenhain |
|||

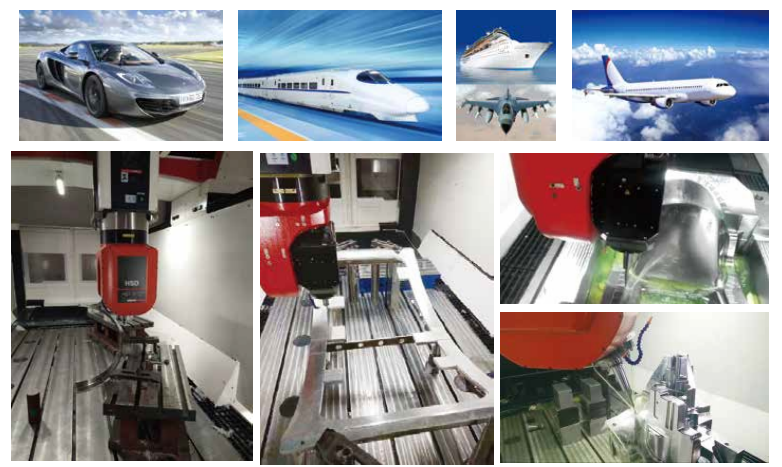

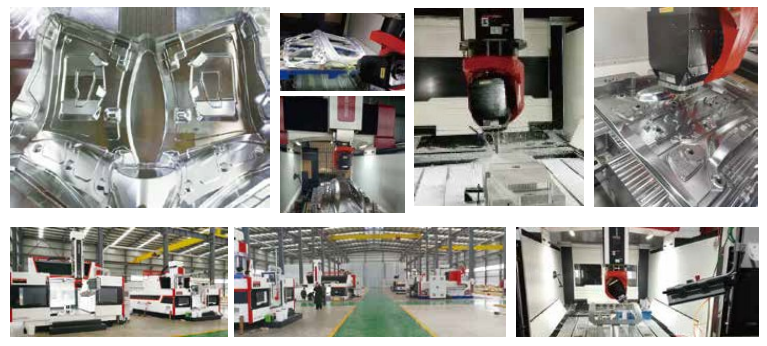

Processing Example
