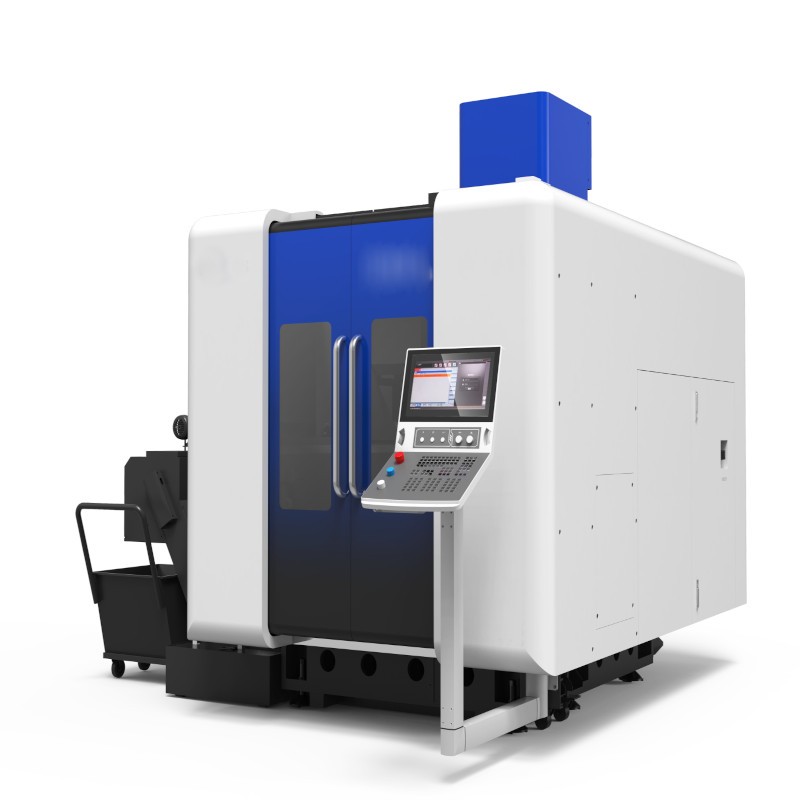

Description
Technical Parameters
|
Configuration |
Unit |
HCNT-F500U |
HCNT-F650U |
HCNT-F800U |
|
X/Y/Z axis travel |
mm |
500/650/450 |
650/800/500 |
850/900/550 |
|
A axis rotation range |
° |
±120 |
±120 |
±120 |
|
C axis rotation range |
° |
360 |
360 |
360 |
|
Dist. from spindle nose to worktable surface |
mm |
150-600 |
150-650 |
180-730 |
|
Worktable size |
mm |
φ500*445 |
φ650*530 |
φ800*700 |
|
Worktable MAX. load |
kg |
300 |
500 |
800 |
|
T-slot (Qty.-width*dist.) |
mm |
7-18*65 |
7-18*65 |
7-18*100 |
|
X/Y/Z axis rapid speed |
mm/min |
36000 |
36000 |
36000 |
|
A/C axis rotation speed |
r/min |
50/50 |
50/50 |
50/50 |
|
X/Y/Z axis positioning accuracy |
mm |
0.006/0.006/0.006 (VDI 3441) |
0.006/0.006/0.006 (VDI 3441) |
0.006/0.006/0.006 (VDI 3441) |
|
X/Y/Z axis repeat positioning accuracy |
mm |
0.004/0.004/0.004 (VDI 3441) |
0.004/0.004/0.004 (VDI 3441) |
0.004/0.004/0.004 (VDI 3441) |
|
A/C axis positioning accuracy |
sec |
5/5 (VDI 3441) |
5/5 (VDI 3441) |
6/6 (VDI 3441) |
|
A/C axis repeat positioning accuracy |
sec |
3/3 (VDI 3441) |
3/3 (VDI 3441) |
4/4 (VDI 3441) |
|
Spindle motor |
kW |
30/35.5 |
30/35.5 |
30/35.5 |
|
Spindle motor torque (S1/S6) |
N.m |
47.7/57.3 |
72/85 |
100/120 |
|
Spindle speed |
r/min |
0~20000 |
0~18000 |
0~16000 |
|
Tool specification |
/ |
HSK A63 |
HSK A63 |
HSK A63 |
|
Tool magazine structure |
/ |
Chained arm-type tool magazine |
Chained arm-type tool magazine |
Chained arm-type tool magazine |
|
Tool magazine capacity |
position |
40 |
40 |
40 |
|
MAX. cutting tool weight |
kg |
8 |
8 |
8 |
|
MAX. cutting tool length |
mm |
300 |
300 |
300 |
|
MAX. diameter (full tool/ adjacent empty tool) |
mm |
φ80/φ150 |
φ80/φ150 |
φ80/φ150 |
|
Control system |
/ |
SIEMENS SINUMERIK ONE |
SIEMENS SINUMERIK ONE |
SIEMENS SINUMERIK ONE |
|
Dimension (L*W*H) |
mm |
3900*3800*3200 |
4900*4200*3300 |
5100*4500*3400 |
Technical configuration
|
|
HCNT-F500U |
HCNT-F650U |
HCNT-F800U |
|
Machine bodymade by casting iron |
● |
● |
● |
|
THK/INA roller linear guide |
● |
● |
● |
|
NSK high speed screw(with inner coolant or nut cooling) |
● |
● |
● |
|
Direct drive rotary table |
● |
● |
● |
|
Full protection cover of sheet metal |
● |
● |
● |
|
Smart operation panel (monitor 18.5”) |
● |
● |
● |
|
HSK A63 high speed motor spindle 20000rpm |
● |
○ |
△ |
|
HSK A63 high speed motor spindle 18000rpm |
▲ |
● |
○ |
|
HSK A63 high speed motor spindle 16000rpm |
▲ |
○ |
● |
|
Tool magazine with 40 position |
● |
● |
● |
|
Tool magazine with 60 position |
○ |
○ |
○ |
|
±0.1 degree variable frequency water coolant machine（spindle, rotary table, screw） |
● |
● |
● |
|
Electric cabinet air conditioner |
● |
● |
● |
|
Scraper chip conveyor |
● |
● |
● |
|
Roller scraper chip conveyor |
○ |
○ |
● |
|
Chain plate chip conveyor |
○ |
○ |
○ |
|
Automatic lubrication system |
● |
● |
○ |
|
Pneumatic system |
● |
● |
● |
|
LED work light |
● |
● |
● |
|
Three-color warning light |
● |
● |
● |
|
Safety lock |
● |
● |
● |
|
External handwheel |
● |
● |
● |
|
Power-off rollback protection device |
● |
● |
● |
|
Cutting tool cooling system |
● |
● |
● |
|
Internal chip cleaning system |
● |
● |
● |
|
Air gun |
● |
● |
● |
|
High-pressure water gun |
● |
● |
● |
|
Siemens SINUMERIK ONE five-axis control system |
● |
● |
● |
|
HEIDENHAIN TNC640 five-axis control system |
○ |
○ |
○ |
|
Three axis linear grating ruler |
○ |
○ |
○ |
|
BLUM laser tool setter |
○ |
○ |
○ |
|
Hexagon laser tool setter |
○ |
○ |
○ |
|
Rotary center with auto-correction system (RENISHAW OMP400, standard ball and calibration system) |
○ |
○ |
○ |
|
Collision avoidance system |
○ |
○ |
○ |
|
Oil mist collector |
○ |
○ |
○ |
|
Spindle oil-air lubrication system |
○ |
○ |
○ |
|
Through spindle coolant system 2/3/5/7MPa |
○ |
○ |
○ |
|
Virtual machine tool and simulation system |
○ |
○ |
○ |
●Standard configuration○Optional configuration▲Need consultation△Do not support
