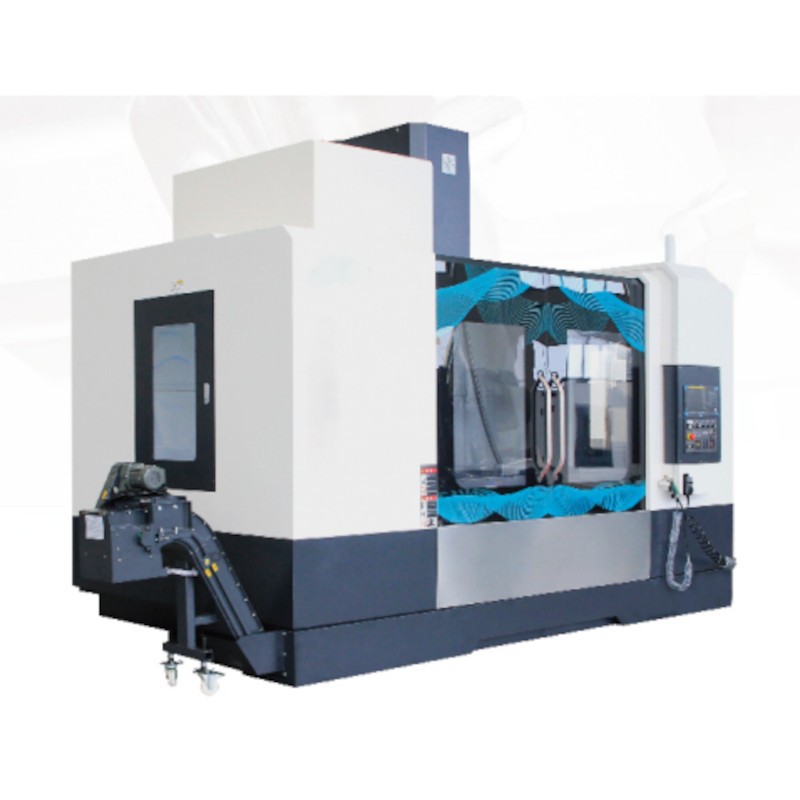

Description
Technical Parameters
|
Configuration |
Unit |
HCNT- TA855 |
HCNT-TA1380 |
HCNT-TA1580 |
HCNT-TA1890 |
||
|
Stroke |
X/Y/Z Stroke |
mm |
800*550*550 |
1300*800*800 |
1500*800*800 |
1800*900*800 |
|
|
Dist. from spindle central to column guide rail surface |
mm |
640 |
870 |
850 |
920 |
||
|
Dist. from spindle nose to worktable |
mm |
120-670 |
200-1000 |
200-1000 |
200-1000 |
||
|
Worktable |
Worktable size |
mm |
1000*550 |
1500*800 |
1700*800 |
2000*900 |
|
|
Worktable load |
kg |
600 |
1200 |
1500 |
2200 |
||
|
T-slot (size*number of slots*dist.) |
mm |
18*5*80 |
22*5*125 |
22*5*125 |
22*5*150 |
||
|
Spindle |
Speed |
rpm |
10000 (optional 12000/15000) |
6000 |
6000 |
6000 |
|
|
Spindle taper |
# |
BT40 (optional BBT40/ HSK-A63) |
BT50 (optional HSK-A63) |
BT50 (optional HSK-A63) |
BT50 (optional HSK-A63) |
||
|
Driving mode |
Belt/ direct connection |
Belt |
Belt |
Belt |
|||
|
Feed system |
Three-axis cutting feed |
mm/min |
1-10000 |
1-8000 |
|||
|
Three-axis rapid feed |
mm/min |
36 |
20 |
||||
|
Accuracy |
Positioning accuracy |
mm |
±0.005/300 |
±0.005/300 |
±0.005/300 |
±0.005/300 |
|
|
Repeatability |
mm |
±0.003/300 |
±0.003/300 |
±0.003/300 |
±0.003/300 |
||
|
Tool changing system |
Number of cutting tools |
PSC |
24 |
24 |
24 |
24 |
|
|
MAX. cutting tool weight |
kg |
7 |
18 |
18 |
18 |
||
|
MAX. cutting tool length |
mm |
300 |
300 |
300 |
300 |
||
|
Tool diameter (full tool/ empty tool) |
mm |
80/150 |
112/200 |
112/200 |
112/200 |
||
|
Tool magazine |
Disc type |
Disc type |
Disc type |
Disc type |
|||
|
CNC system |
Control system |
FANUC 01-MF Plus/ MELDAS/ FANUC 01-MF Plus/ Mitsubishi M80 |
|||||
|
Spindle motor power |
kW |
11/18.5 |
11/15 |
15/18.5 |
15/18.5 |
||
|
Three-axis motor power |
kW |
3.0/3.0/3.0 |
3.0/3.0/3.0 |
3.0/3.0/3.0 |
3.0/3.0/3.0 |
||
|
Other |
Air pressure |
bar |
0.6 |
0.6 |
0.6 |
0.6 |
|
|
Electricity request |
kva |
35 |
35 |
45 |
45 |
||
|
Machine total weight |
kg |
6000 |
9000 |
11000 |
18000 |
||
