Description
CNC Gantry machine
3 axis gantry
Crossbeam Moving Gantry machining center

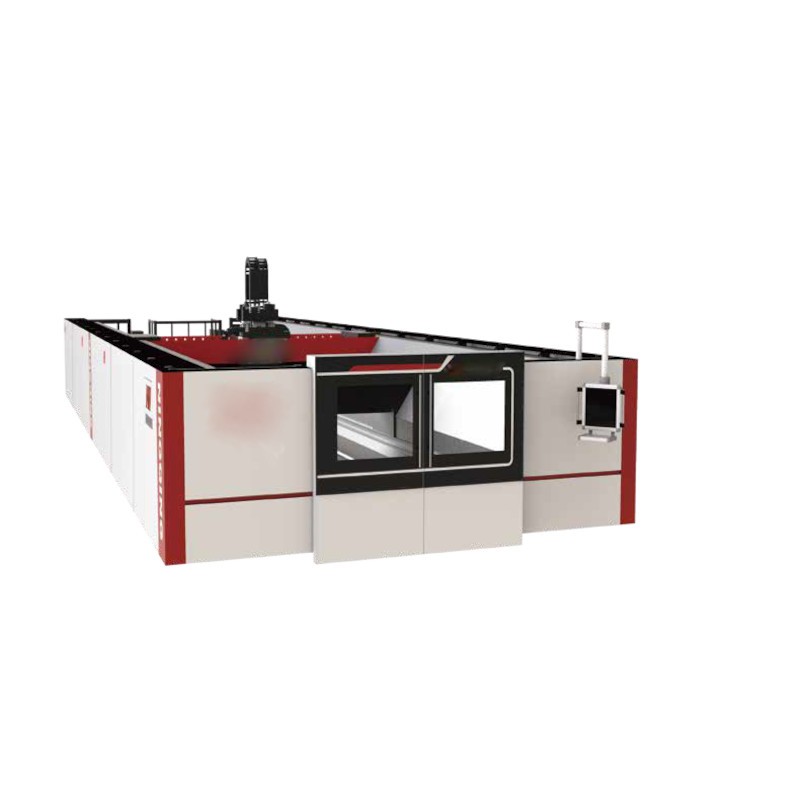

HCNT-CMS series
Technical Parameters
|
Configuration |
Unit |
HCNT-CMS 25 series |
HCNT-CMS 30 series |
HCNT-CMS 35 series |
HCNT-CMS 40 series |
HCNT-CMS 50 series |
|
Worktable length |
m |
14,16,18,20,22 (table length can be increased by every 2 meters) |
||||
|
Worktable width |
mm |
2100 |
2600 |
3100 |
3600 |
4600 |
|
X axis travel |
mm |
4000, 6000, 10000, 14200, 16200, 18200, 20200, 22200 (X-directional travel increases by every 2 meters) |
||||
|
Y axis travel |
mm |
2500 |
3000 |
3000 |
3500 |
4000 |
|
Linear guide way |
|
X: 2 guide way/side×2 in parallel distribution, Y: 4 guide way in vertical distribution, Z: 4 roller guide way on four-way distribution |
||||
|
Max. workpiece width |
mm |
3160 |
3600 |
4100 |
4600 |
5600 |
|
Rapid/feeding speed |
m/min |
40/0-20 |
||||
|
Positioning/repeat accuracy |
mm |
0.01/0.005 |
||||
|
Tool magazine capacity |
position |
20 |
||||
|
Control system |
|
Siemens 828D, Siemens ONE |
||||
|
Configuration |
Unit |
HCNT-CMS-HG |
HCNT-CMS-H |
HCNT-CMS-L |
|
Z axis travel |
mm |
600 |
1200 |
1200 |
|
Dist. from spindle nose to table |
mm |
100-700 (customizable) |
350-1550 (customizable) |
350-1550 (customizable) |
|
Electric spindle |
|
C1 head, C2 head (optional) |
B1 head, C2 head (optional) |
B1 head, C2 head (optional) |
|
Max. loading height |
mm |
650 (customizable) |
1550 (customizable) |
1550 (customizable) |
Note:
- The table length and X-axis stroke of the extra-long series models are increased by every 2 meters, and the table width and Y-axis stroke are increased by every 0.5 meters, model number changed accordingly.
