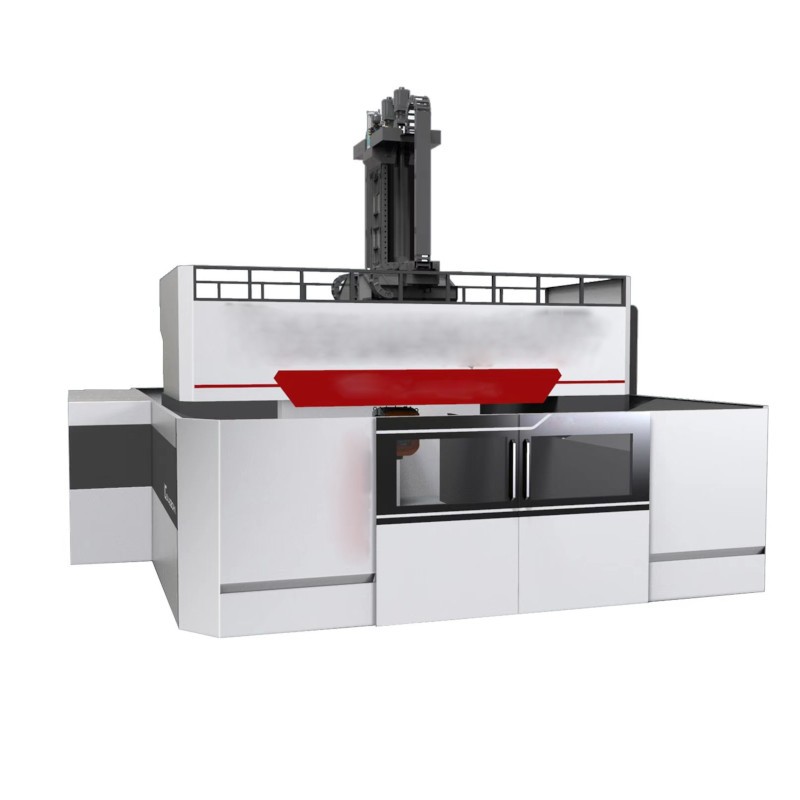

Crossbeam Moving Five Axis Gantry machining center
HCNT-CM5A series
Technical Parameters
|
Configuration |
Unit |
HCNT-CM5A3016 |
HCNT-CMI5A3020 |
|
Worktable area |
mm |
3200×1600 |
3200×2000 |
|
Max. worktable loading |
t |
20 |
30 |
|
X/Y/Z travel |
mm |
3200×1600×800 |
3200×2000×1000 |
|
Guide way |
|
X: 2 linear guide way on each side Y: 4 heavy-duty linear roller guide way Z: 4 linear roller guide way |
|
|
Dist. from spindle nose to table surface |
mm |
280-1080 (customizable) |
280-1280 (customizable) |
|
Spindle |
|
B head (standard) A / C head (optional) |
|
|
Tool magazine capacity |
position |
20 |
|
|
Max. loading height |
mm |
1000 (customizable) |
1000 (customizable) |
|
Max. loading width |
mm |
2000 |
|
|
Feeding speed |
m/min |
0- 20 |
|
|
Rapid speed |
m/min |
40 / 40 / 20 |
|
|
Positioning accuracy |
mm |
0.01 |
|
|
Repeat positioning accuracy |
mm |
0.005 |
|
|
Weight of machine |
t |
40 |
42 |
|
Dimension (without electric cabinet) |
mm |
7400×4300×5500 |
7400×4700×6200 |
|
Control system |
|
5-axis simultaneous standard Siemens ONE / Heidenhain |
|
