CNC Gantry machine
3 axis gantry

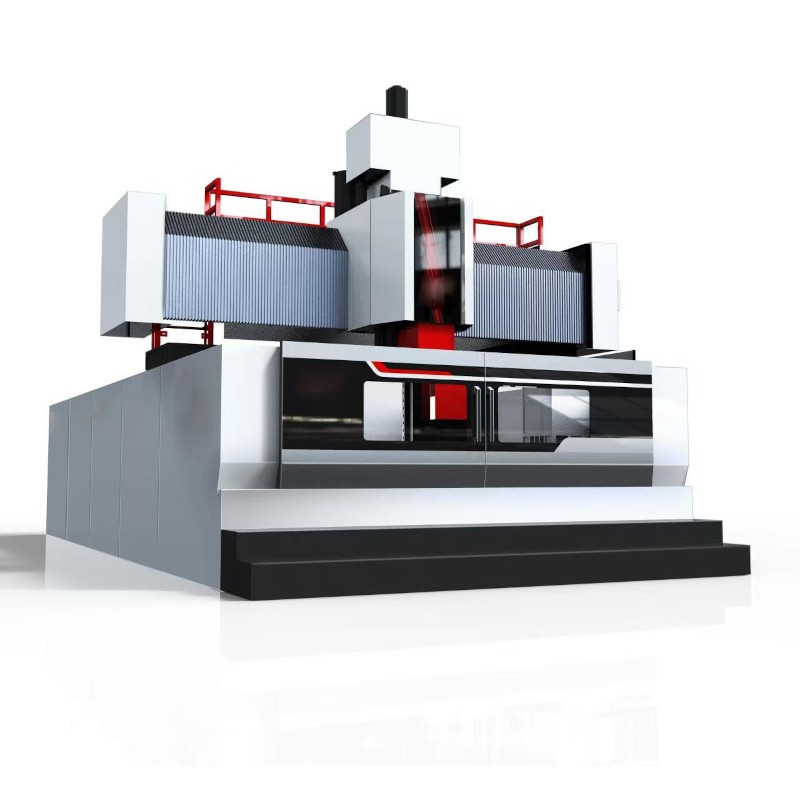

Column Moving Gantry machining center
HCNT-IMS series
Technical Parameters
|
Configuration |
Unit |
HCNT-IMS60/80-30 |
HCNT-IMS60/80-35 |
HCNT-IMSXXX35 |
|
Worktable area |
mm |
6000/8000x2100 |
6000/8000x2600 |
XXXx2600 |
|
Max. worktable loading |
t |
38/60 |
50/65 |
/ |
|
Y1/Y2 travel |
mm |
3000/3500 |
3500/4000 |
|
|
X/Z travel |
mm |
6200/8200×1200 |
6200/8200×1200 |
/ |
|
Guide way |
|
X: 2 linear rolling guide way+1 box guide way, Y: 2 linear rolling guide way×2+box guide way×2, Z: box guide way |
||
|
Dist. from spindle nose to table |
mm |
350-1550, 350-1850/optional |
||
|
Spindle |
rpm |
Built-in short direct motor BT50-6000 rpm, BT50-8000 rpm, BT50-3000 rpm (roller bearing), BT60-2000 rpm with gearbox/ optional CTS function for optional only suit for long direct connection structure |
||
|
Spindle motor |
|
30/35 series: standard28/42 kW (rated 1000 rpm) 268/401 Nm (two-speed gearbox 1070/1604 Nm) optional: 35/52.5 Kw (rated 700 rpm), 418/717 Nm (two-speed gearbox 3000 Nm) |
||
|
Tool magazine capacity |
position |
Disc 24 position/chain style tool changer |
||
|
Distance between columns |
mm |
3000 |
3500 |
|
|
Rapid traverse/feed speed |
m/min |
15 (screw driven) 20 (rack driven)/0-10 |
||
|
Positioning accuracy/ repeatability |
mm |
0.01/0.005 |
||
|
Machine weight |
t |
50/65 |
58/70 |
/ |
|
Dimension (without electric cabinet) |
mm |
11650/13650×6850×5200 |
11650/13650×7750×5200 |
/ |
|
Control system |
|
Siemens 828D, Fanuc 0i MF plus, optional: Siemens ONE |
||
Note:
Adopts screw-nut transmission for up to 6 meters on X direction, double rack and pinion backlash elimination structure for 8 meters and above.
